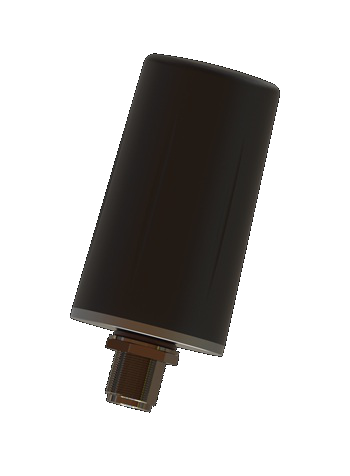

Wideband Terminal Antenna with Type-N connector for IoT and M2M Applications
Rugged tamper-proof wideband terminal antenna combining the cellular/mobile GSM(2G), UMTS(3G), LTE(4G), 5G NR(5G) and WiFi frequencies. The antenna is ideal for fleet management, IoT and M2M applications providing a stable connection in critical areas.
| Frekvens | 617 – 960 MHz, 1427 – 1518 MHz, 1710 – 2170 MHz, 2300 – 2690 MHz, 3300 – 3800 MHz |
|---|---|
| Gain | -1 dBd, 1.15 dBi (617-790 MHz) 0 dBd, 2.15 dBi (790-960 MHz) 3 dBd, 5.15 dBi (1427- 2690 MHz) 5 dBd, 7.15 dBi (3300-3800 MHz) Measured on a Ø50 cm ground plane |
| Stik | Type N-female |

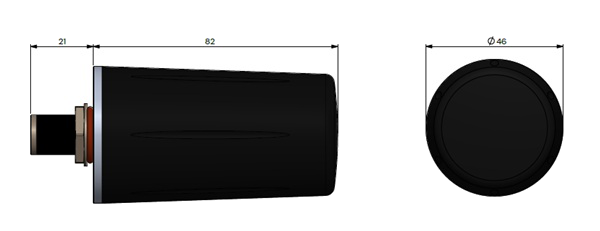

| Længde/højde | Ø 46 x 110 mm |
| Montering | Bolt-on |
| Monteringssted | On vertical or horizontal surfaces (conductive). E.g. car roofs, metering cabinets and brackets |
| Max. effekt | 40 W |
| IP-klasse | IP65 (when mounted) |
48200-000 – Antenna – Bulk
48200-001 – Antenna – Polybag
48200-023 – Antenna + Mount (10000-141) – Box
