Wideband Terminal Antenna with Type-N Connector for IoT and M2M Applications
A rugged, tamper-proof wideband terminal antenna that combines cellular/mobile GSM (2G), UMTS (3G), LTE (4G), 5G NR (5G), and Wi-Fi frequencies. The antenna is ideal for fleet management, IoT, and M2M applications, providing a stable connection in critical areas.
| Frequency | 617–960 MHz, 1427–1518 MHz, 1710–2170 MHz, 2300–2690 MHz, 3300–3800 MHz |
|---|---|
| Gain | -1 dBd, 1.15 dBi (617–790 MHz) 0 dBd, 2.15 dBi (790–960 MHz) 3 dBd, 5.15 dBi (1427–2690 MHz) 5 dBd, 7.15 dBi (3300–3800 MHz) Measured on a Ø50 cm ground plane |
| Connector | Type N female |
| Length/Height | Ø 46 x 110 mm |
| Installation | Bolt-on |
| Installation Location | On vertical or horizontal surfaces (conductive). For example, car roofs, meter cabinets, and brackets |
| Max. power | 40 W |
| IP rating | IP65 (when mounted) |
48200-000 – Antenna – Bulk
48200-001 – Antenna – Polybag

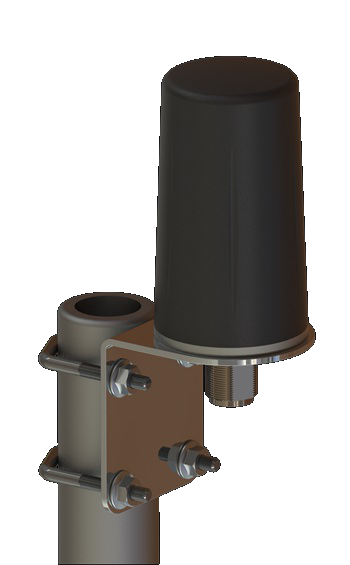

48200-023 – Antenna + Mount (10000-141) – Box
