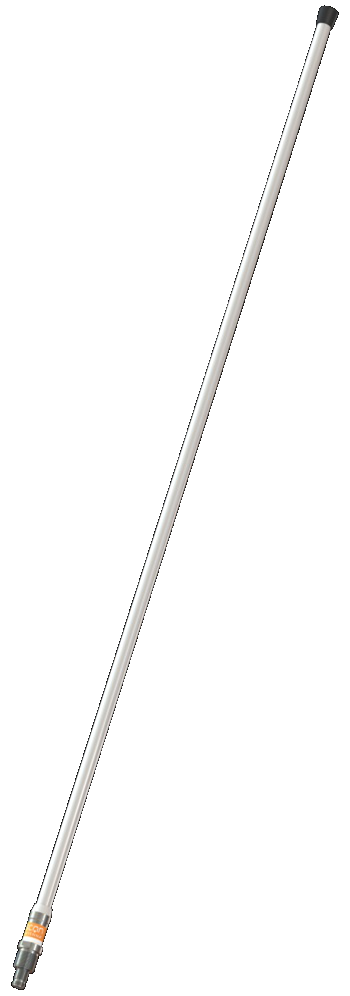

6 dB UHF Fibreglass Antenna 1.14-1.34 m (806-960 MHz in 3 versions)
Ingen
| Frekvens | 806 – 866 MHz, 824 – 894 MHz, 890 – 960 MHz |
|---|---|
| Gain | 6 dB (Marine), 3 dBd, 5.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | Max. 1340 mm (“A” version) |

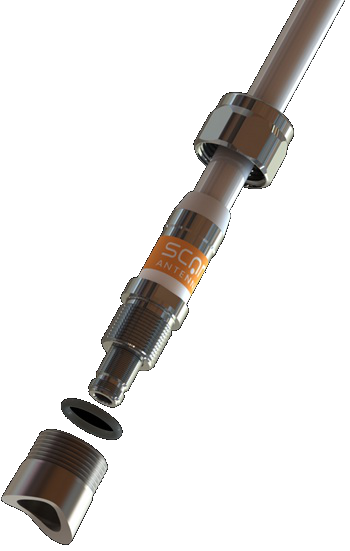

| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 200 W |
| IP-klasse | IP66 |
14096-000A – 806-866 MHz (Antenna only – bulk packing
14096-001A – 806-866 MHz (Antenna only – in Polybag
14096-002A – 806-866 MHz (Antenna only – in Carton tube
14096-000B – 824-894 MHz (Antenna only – bulk packing
14096-001B – 824-894 MHz (Antenna only – in Polybag
14096-002B – 824-894 MHz (Antenna only – in Carton tube
14096-000C – 890-960 MHz (Antenna only – bulk packing
14096-001C – 890-960 MHz (Antenna only – in Polybag
14096-002C – 890-960 MHz (Antenna only – in Carton tube
Ingen
| Frekvens | 806 – 866 MHz, 824 – 894 MHz, 890 – 960 MHz |
|---|---|
| Gain | 6 dB (Marine), 3 dBd, 5.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | Max. 1340 mm (“A” version) |
| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 200 W |
| IP-klasse | IP66 |
