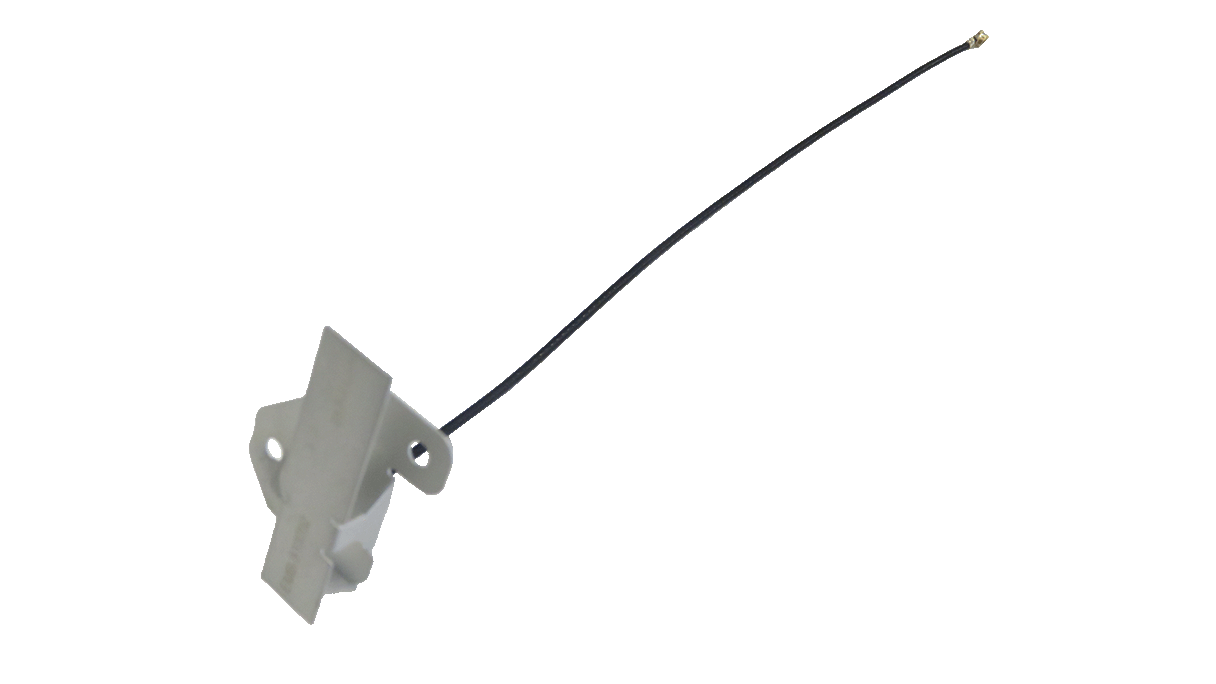

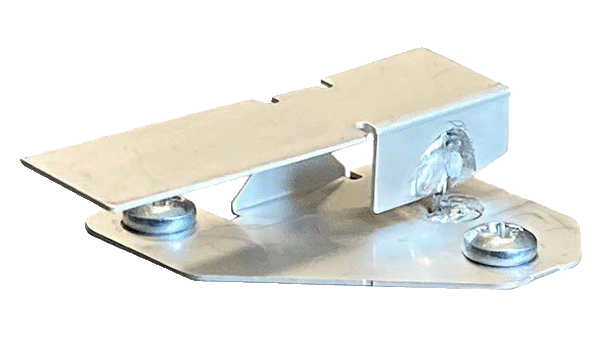

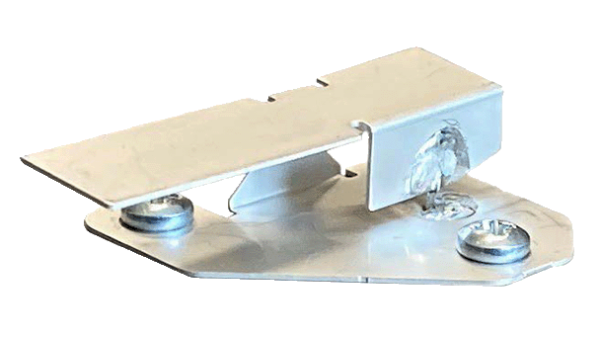

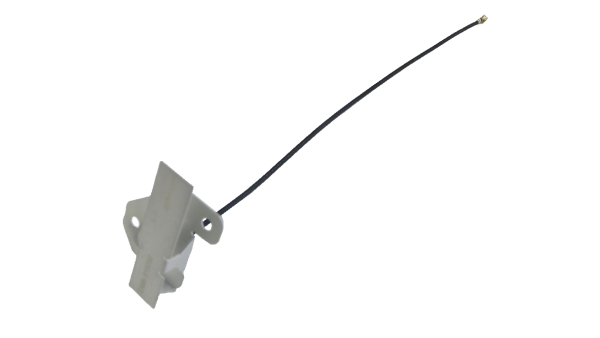

The EMB-910002 antenna element is a tri-band “inverted-F” antenna that covers the 2.4 GHz, 5 GHz, and 6 GHz WiFi frequency bands. It is a low profile solution (<8 [mm] tall) that is easily mounted to an external ground plane using screws. The mixed-polarized, broad radiation patterns are ideal for many applications including indoor high-density access point deployments and high-ceiling deployments common in retail and industrial settings. The element is designed for integration in wireless systems to support applications that require wide, hemispherical coverage. Additionally, the EMB-910002 is approved for use with the PCTEL RM-WIFI-AC-2X2-HP 5 GHz radio module.

• Easy to deploy using common hardware
• Small and low-profile: the antenna can be integrated into small spaces and is tuned for proximate radome loading
• Mixed-polarized, broad radiation patterns enable wireless connectivity over a hemisphere
• Solid mechanical construction and cable attachment

Specifikationer
