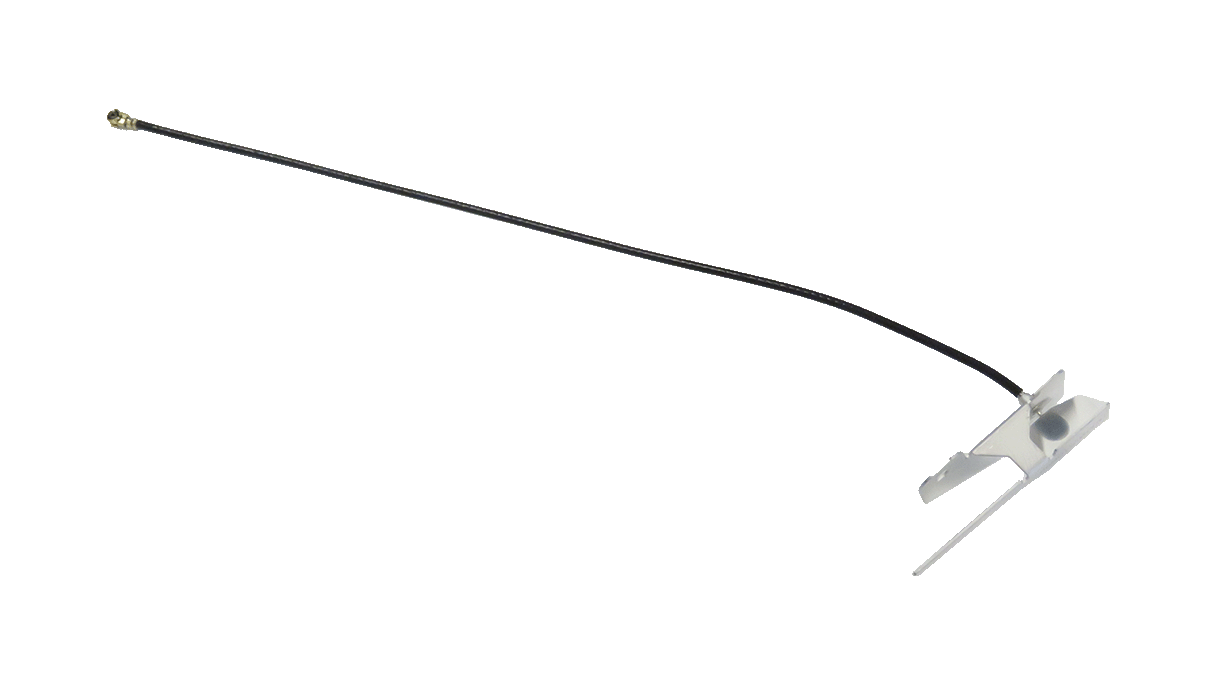

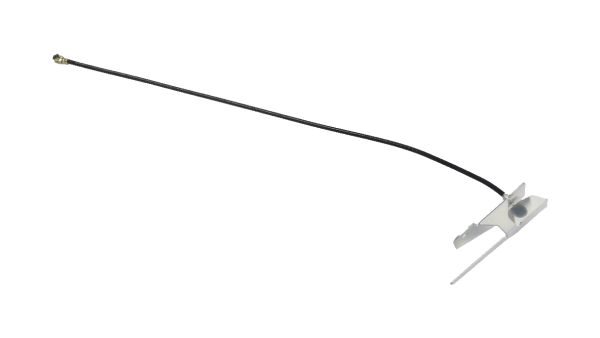

The EMB-910002 antenna element is a tri-band “inverted-F” antenna that covers the 2.4 GHz, 5 GHz, and 6 GHz Wi-Fi frequency bands. It is a low-profile solution (<8 [mm] tall) that can be easily mounted to an external ground plane using screws. The mixed-polarization, broad radiation patterns are ideal for many applications, including indoor high-density access point deployments and high-ceiling deployments common in retail and industrial settings. The element is designed for integration into wireless systems to support applications requiring wide, hemispherical coverage. Additionally, the EMB-910002 is approved for use with the PCTEL RM-WIFI-AC-2X2-HP 5 GHz radio module.

• Easy to deploy using standard hardware
• Small and low-profile: the antenna can be integrated into small spaces and is tuned for loading by a nearby radome
• Mixed-polarization, broad radiation patterns enable wireless connectivity across a hemisphere
• Sturdy mechanical construction and cable attachment

Specifications
