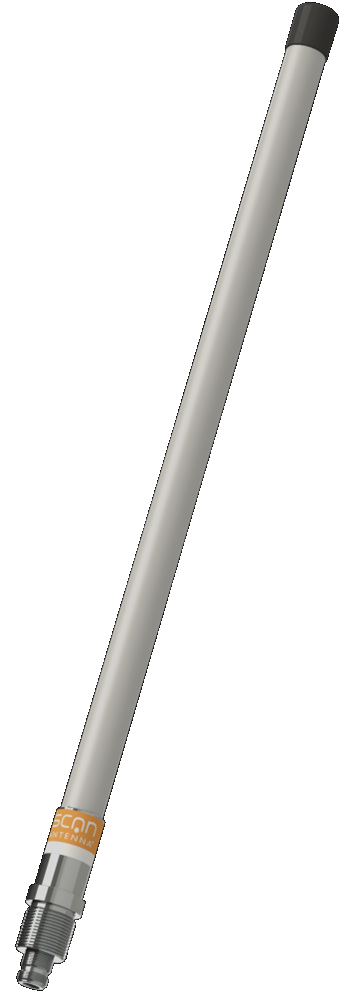

9 dB Dual Band WIFI Marine Antenna 0.56 m
Long range high gain dual band WIFI antenna designed for professional maritime use
| Frekvens | 2400 – 2495 MHz, 4910 – 5925 MHz (IEEE 802.11 (WLAN) a/b/g/h/j/n/p/ac ) |
|---|---|
| Gain | 9 dB (Marine), 5 dBd, 7.1 dBi |

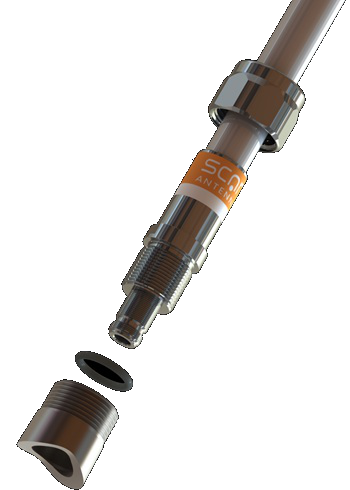

| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | 558 mm |
| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 10 W |
| IP-klasse | IP66 |
18001-000 – Antenna only – Bulk packing
18001-001 – Antenna only – in Polybag
18001-002 – Antenna only – in Carton tube
18001-431 – Antenna + 1″ Revolving Nut Kit – in Polybag
18001-432 – Antenna + 1″ Revolving Nut Kit – in Carton tube
