4G Wall Antenna Multiband Long range multiband antenna
Long range multiband antenna, ideal for IOT/M2M, cellular/mobile GSM(2G), UMTS(3G), LTE(4G) and WIFI low band communication.
| Frekvens | 790 – 960 MHz, 1710 – 2170 MHz, 2412 – 2484 MHz, 2500 – 2690 MHz |
|---|---|
| Gain | 0 dBd, 2.1 dBi (790-960 MHz) 3 dBd, 5.1 dBi (1710-2170 MHz) 7 dBd 9.1 dBi (2412-2690 MHz) |
| Stik | N-female |
| Kabel | No cable supplied |

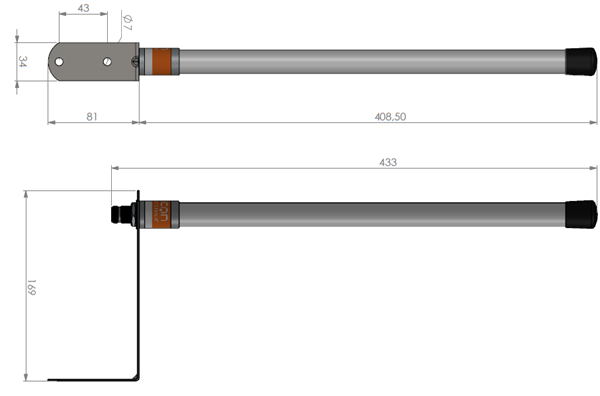

| Længde/højde | 440 mm |
| Monteringssted | On wall or pole |
| Max. effekt | 100 W |
| IP-klasse | IP66 |

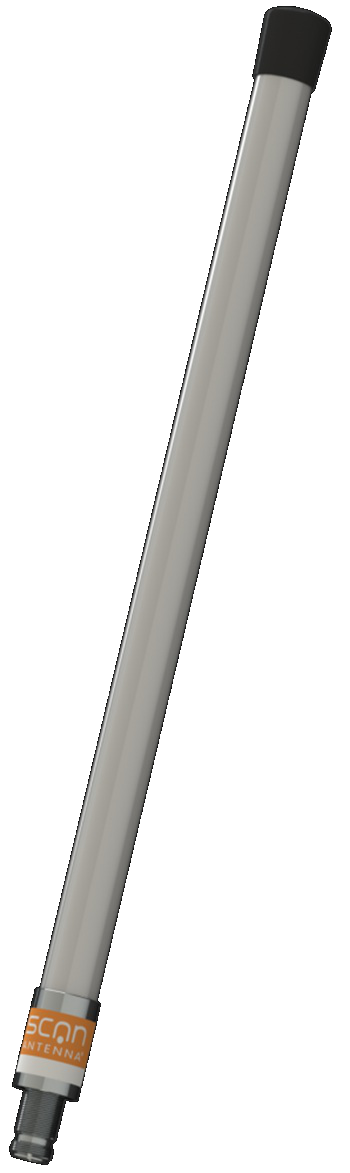

40101-000 – Antenna only (Bulk packing
40101-001 – Antenna only (Polybag
40101-002 – Antenna only (Tube

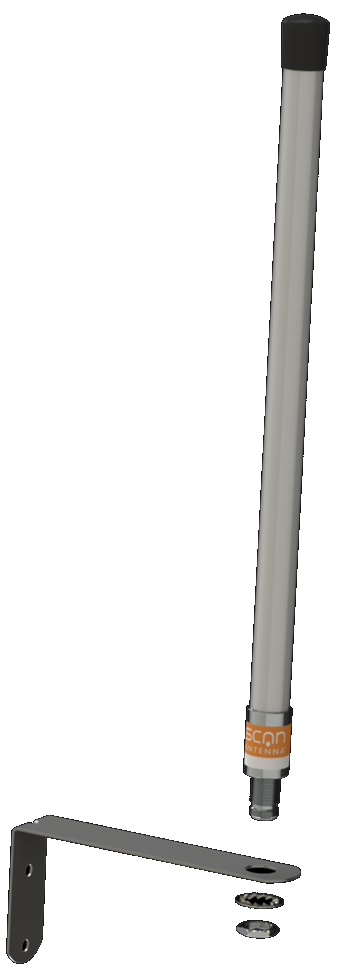

40101-011 – Antenna + Bracket + Mounting Kit (Polybag
16180IP – Bracket (Bulk packing
10000-501B – Mounting Kit Small (Polybag
