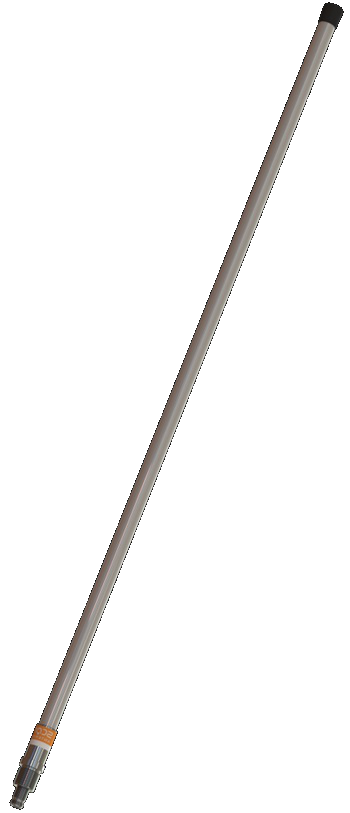

3 dB Dual Band Marine VHF and GNSS Glass Fibre Antenna 1.1 m
Dual band antenna combining the International Maritime VHF band and four satellite navigation/positioning systems. The antenna is especially made for maritime identification systems, e.g. AIS.
| Frekvens | 156 – 162.5 MHz, 1555.4 – 1610 MHz (International Maritime VHF- band + 4 GNSS bands) |
|---|---|
| Gain | 0 dBd, 2.1 dBi |
| Stik | N-female |
| Kabel | 2 pcs short diplexer cables and 1 pcs antenna down-lead cable is needed for the installation of the system. The short diplexer cables for the GNSS receiver and the VHF-radio are included in some kits – please see “ORDERING INFORMATION”). The downlead cable between the antenna and the diplexer must be ordered separately. |
| Længde/højde | 1120 mm |

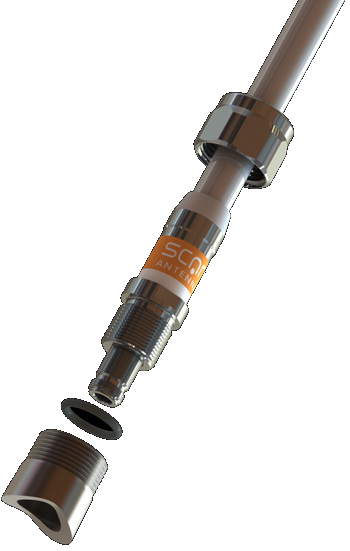

| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | VHF: 35 W |
| IP-klasse | IP66 |
11604-001 – VHFGPS4 Antenna only – in polybag (No diplexer)
11604-002 – VHFGPS4 Antenna only – in carton tube (No diplexer)
11604-431 – VHFGPS4 Antenna only + 1″ Nut – in polybag (No diplexer)
11604-432 – VHFGPS4 Antenna + 1″ Nut – in carton tube (No diplexer)
11604-701 – VHFGPS4 KIT Antenna with diplexer – in polybag
11604-702 – VHFGPS4 KIT Antenna with diplexer – in carton tube
11604-711 – VHFGPS4 KIT Antenna with diplexer and 1″ nut – in polybag
11604-712 – VHFGPS4 KIT Antenna with diplexer and 1″ nut – in carton tube
11604-721 – VHFGPS4 KIT Antenna with diplexer, cable kit and 1″ nut – in polybag
11604-722 – VHFGPS4 KIT Antenna with diplexer, cable kit and 1″ nut – in carton tube

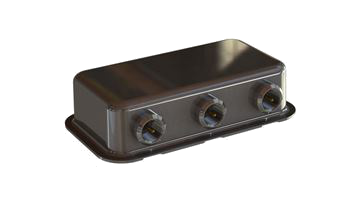

10100-000 – Diplexer only – bulk packing
