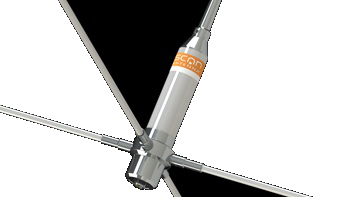

VHF96 – 6 dB VHF Fibreglass Antenna 1.2 m

6 dB VHF Fibreglass Antenna 1.2 m

VHF96 – 6 dB VHF Fibreglass Antenna 1.2 m

VHF96 – 6 dB VHF Fibreglass Antenna 1.2 m – billede 2

VHF96 – 6 dB VHF Fibreglass Antenna 1.2 m – billede 3

VHF96 – 6 dB VHF Fibreglass Antenna 1.2 m – billede 4

Beskrivelse

Varianter

Downloads

Tilbehør

Beskrivelse

Ingen

Heavy duty antenna for commercial and fishing vessels
Easy installation directly on 27mm pole/mast
Full 5/8 λ Ground Plane Antenna design
Full omni-directional radiation pattern
No groundplane needed
Factory tuned to the International Maritime VHF-Band

Specifikationer

Frekvens	156 – 162.5 MHz (International Maritime VHF-Band)
Gain	6 dB (Marine), 3 dBd, 5.1 dBi
Stik	UHF-female
Kabel	No cable supplied
Længde/højde	Approx. 1215 mm
Montering	On pole Ø 27 mm only (Not supplied)
Max. effekt	250 W
IP-klasse	IP24

Varianter

Downloads

Tilbehør

Beskrivelse

Downloads

Beskrivelse

Ingen

Heavy duty antenna for commercial and fishing vessels
Easy installation directly on 27mm pole/mast
Full 5/8 λ Ground Plane Antenna design
Full omni-directional radiation pattern
No groundplane needed
Factory tuned to the International Maritime VHF-Band

Specifikationer

Frekvens	156 – 162.5 MHz (International Maritime VHF-Band)
Gain	6 dB (Marine), 3 dBd, 5.1 dBi
Stik	UHF-female
Kabel	No cable supplied
Længde/højde	Approx. 1215 mm
Montering	On pole Ø 27 mm only (Not supplied)
Max. effekt	250 W
IP-klasse	IP24

Downloads

Vil du vide mere?

Vil du vide mere om VHF96 – 6 dB VHF Fibreglass Antenna 1.2 m, så udfyld formularen og vi kontakter dig.
