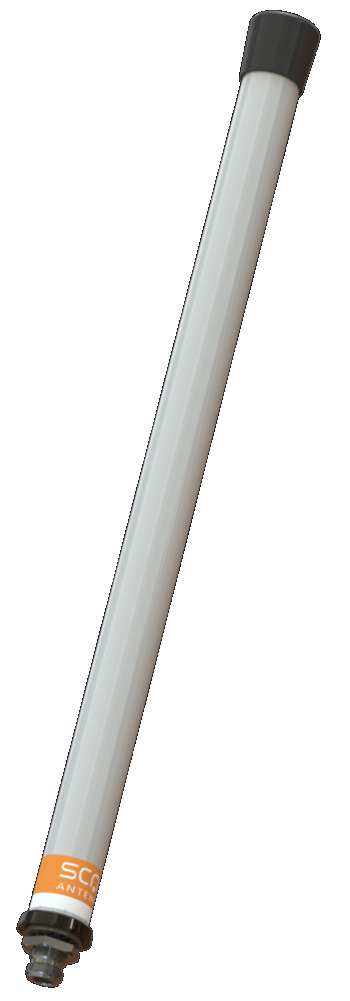

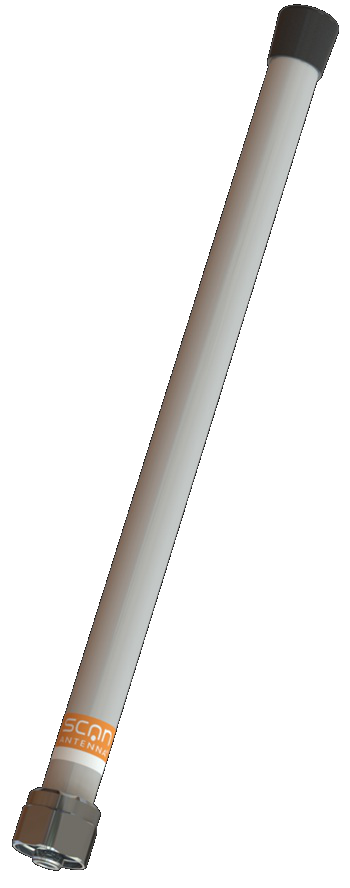

3-10 dB UHF Multiband Antenna 0.5 m
Multiband antenna combining the cellular/mobile GSM(2G), UMTS(3G), LTE(4G), 5G and WiFi frequencies for vessel or land based phone and WiFi communication. Ideal for IOT and M2M applications.
| Frekvens | 698 – 960 MHz, 1427 – 1518 MHz, 1710 – 2170 MHz, 2300 – 2690 MHz, 3300 – 3800 MHz |
|---|---|

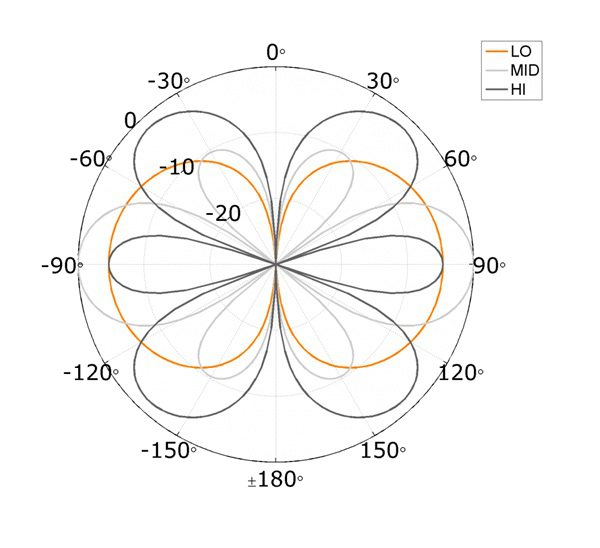

| Gain | 3 dB (Marine), 0 dBd, 2.15 dBi (698-960 MHz) 6 dB (Marine), 3 dBd, 5.15 dBi (1427-1518/1710-2170 MHz) 10 dB (Marine), 7 dBd, 9.15 dBi (2300-2690/3300-3800 MHz) |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | 465 mm |
| Montering | On 1″ threaded pole or bracket (G1″-11 thread) with the supplied fixed Revolving Nut |
| Monteringssted | On mast or deck |
| Max. effekt | 100 W |
| IP-klasse | IP66 |
14593-430 – Antenna + 1″ Revolving Nut – Bulk
14593-431 – Antenna + 1″ Revolving Nut – Polybag
14593-432 – Antenna + 1″ Revolving Nut – Carton tube
14593-000 – Antenna – Bulk
14593-001 – Antenna – Polybag
14593-002 – Antenna – Carton tube
