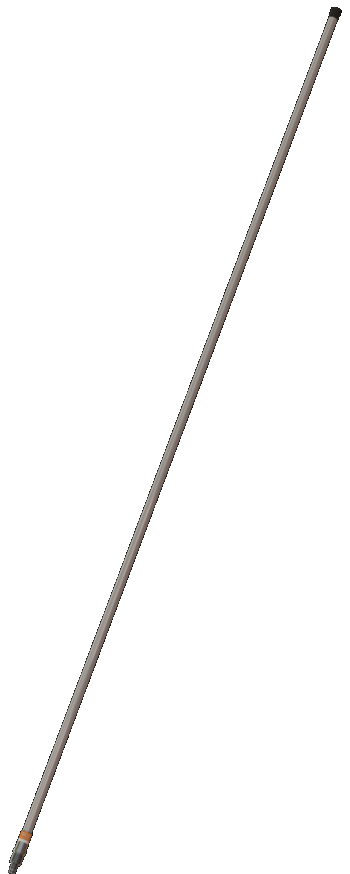

9 dB UHF Fibreglass Antenna 2.19 m (380-470 MHz in 4 versions)
Ingen
| Frekvens | 380 – 410 MHz, 400 – 430 MHz, 420 – 450 MHz, 440 – 470 MHz |
|---|---|
| Gain | 9 dB (Marine), 5 dBd, 7.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | 2132 mm |

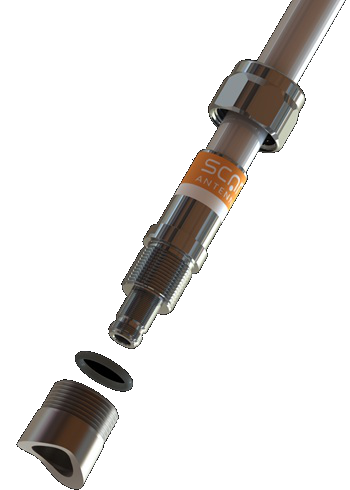

| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 250 W |
| IP-klasse | IP66 |
14049-002A – 380-410 MHz (TETRA – Antenna only – Carton Tube
14049-432A – 380-410 MHz (TETRA – Antenna + 1″ Revolving Nut Kit – in Carton tube
14049-002B – 400-430 MHz (TETRA – Antenna only – in Carton tube
14049-432B – 400-430 MHz (TETRA – Antenna + 1″ Revolving Nut Kit – in Carton tube
14049-002C – 420-450 MHz (ISM – Antenna only – in Carton tube
14049-432C – 420-450 MHz (ISM – Antenna + 1″ Revolving Nut Kit – in Carton tube
14049-002D – 440-470 MHz (ISM, PMR – Antenna only – in Carton tube
14049-432D – 440-470 MHz (ISM, PMR – Antenna + 1″ Revolving Nut Kit – in Carton tube
Ingen
| Frekvens | 380 – 410 MHz, 400 – 430 MHz, 420 – 450 MHz, 440 – 470 MHz |
|---|---|
| Gain | 9 dB (Marine), 5 dBd, 7.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | 2132 mm |
| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 250 W |
| IP-klasse | IP66 |
