3 dB UHF Ultra-Wide Band Fiberglass Antenna 0,64 m (4 versions)

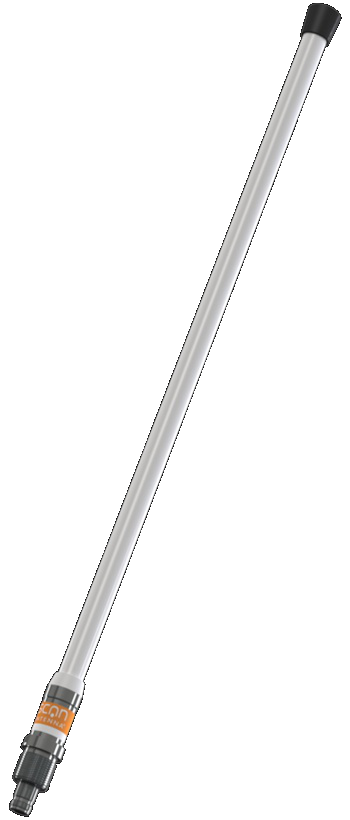

The UHF44 is a lightweight broadbanded UHF omnidirectional maritime antenna.
| Frekvens | 330 – 380 MHz, 380 – 430 MHz, 420 – 470 MHz, 460 – 510 MHz (A/B/C/D) |
|---|---|
| Gain | 3 dB, 0 dBd, 2.15 dBi |
| Stik | N-female |
| Længde/højde | Approx. 640 mm |

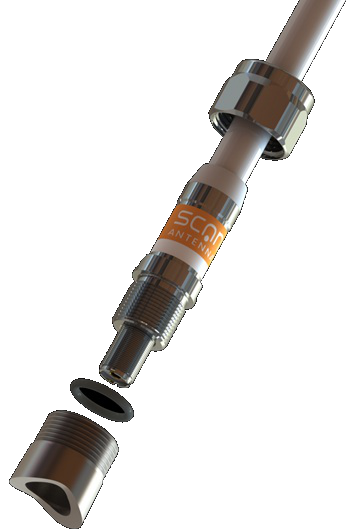

| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | Mast or deck |
| Max. effekt | 200 W |
| IP-klasse | IP66 |
14044-001A/B/C/D – Individually packing in Polybag
14044-002A/B/C/D – Individually packing in Carton tube
14044-431A/B/C/D – If 1″ Revolving Nut Kit is needed together with antenna for kit in Polybag
14044-432A/B/C/D – If 1″ Revolving Nut Kit is needed together with antenna for kit in Carton tube
