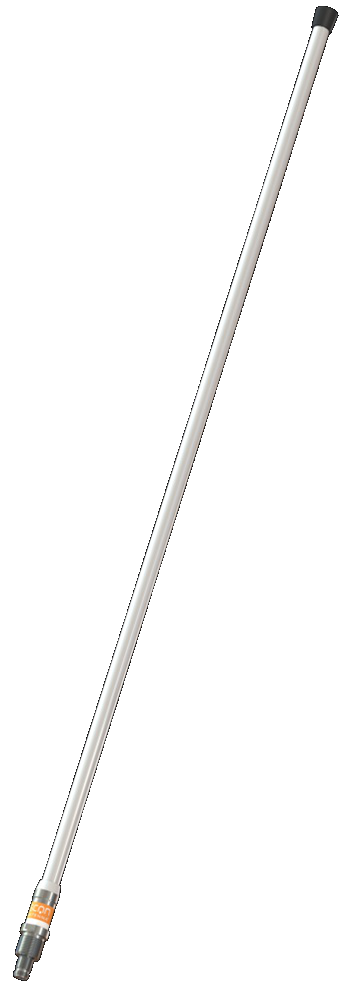

3 dB UHF Fibreglass Antenna 1.14 m (5 versions)
Ingen
| Frekvens | 380 – 400 MHz, 406 – 430 MHz, 425 – 450 MHz, 445 – 470 MHz, 330 – 360 MHz |
|---|---|
| Gain | 3 dB (Marine), 0 dBd, 2.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |

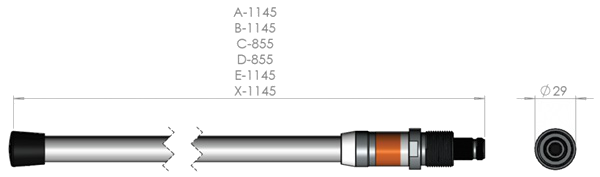

| Længde/højde | 855 – 1145 mm (depending on frequency) |
| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 250 W |
| IP-klasse | IP66 |
14043-001A – TETRA 380-400 MHz (Individually packing in Polybag
14043-001B – TETRA 406-430 MHz (Individually packing in Polybag
14043-001C – ISM 425-450 MHz (Individually packing in Polybag
14043-001D – PMR 445-470 MHz (Individually packing in Polybag
14043-001E – NJFA 330-360 MHz (Individually packing in Polybag
14043-002A/B/C/D/E – – see products above (Individually packing in Carton tube
