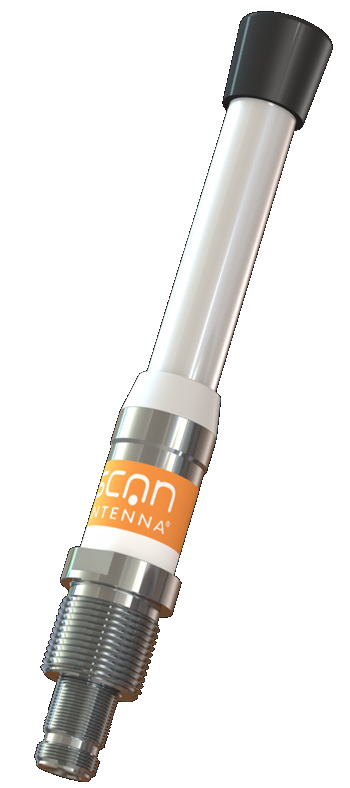

3 dB UHF Fibreglass Antenna 0,21 m (2300-2500 MHz)
Ingen
| Frekvens | 2300 – 2500 MHz |
|---|---|
| Gain | 3 dB (Marine), 0 dBd, 2.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | Approx. 210 mm |
| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 40 W |
| IP-klasse | IP66 |
14243-000 – Antenna only – bulk packing
14243-001 – Antenna only – in Polybag
14243-002 – Antenna only – in Carton tube

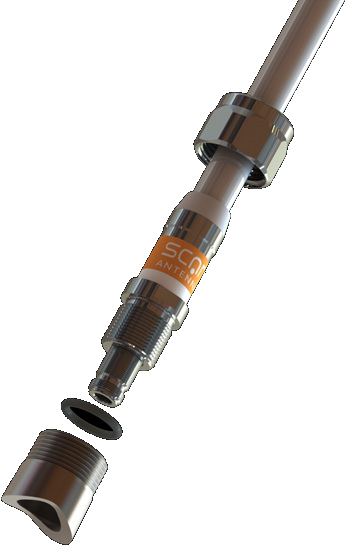

14243-431 – Antenna + 1″ Revolving Nut Kit – in Polybag
14243-432 – Antenna + 1″ Revolving Nut Kit – in Carton tube
Ingen
| Frekvens | 2300 – 2500 MHz |
|---|---|
| Gain | 3 dB (Marine), 0 dBd, 2.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | Approx. 210 mm |
| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 40 W |
| IP-klasse | IP66 |
