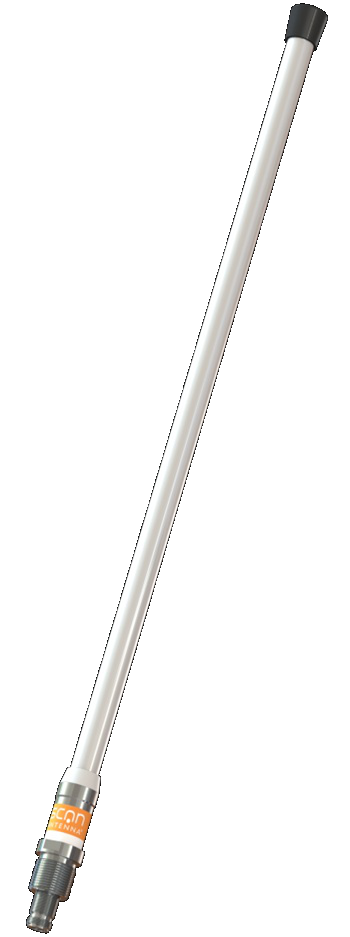

6 dB UHF Fibreglass Antenna 0,64 m (1850-1990 MHz)
Ingen

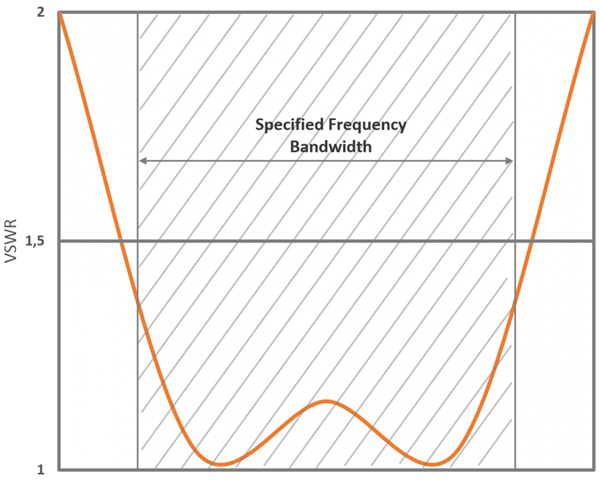

| Frekvens | 1850 – 1990 MHz |
|---|---|

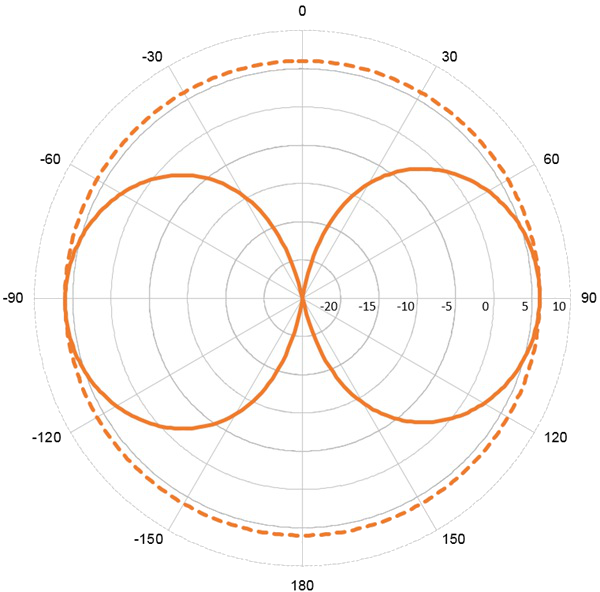

| Gain | 6 dB (Marine), 3 dBd, 5.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | Approx. 640 mm |

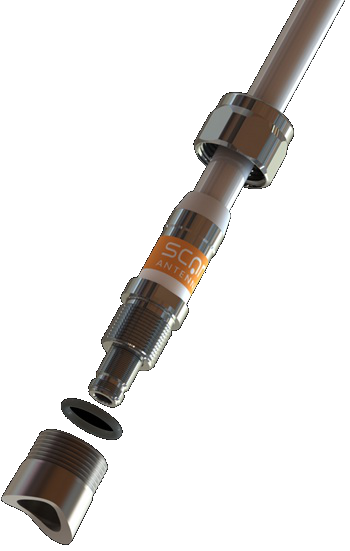

| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 100 W |
| IP-klasse | IP66 |
14196-000 – Antenna only – bulk packing
14196-001 – Antenna only – in Polybag
14196-002 – Antenna only – in Carton tube
14196-431 – Antenna + 1″ Revolving Nut Kit – in Polybag
14196-432 – Antenna + 1″ Revolving Nut Kit – in Carton tube
Ingen
| Frekvens | 1850 – 1990 MHz |
|---|---|
| Gain | 6 dB (Marine), 3 dBd, 5.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | Approx. 640 mm |
| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 100 W |
| IP-klasse | IP66 |
