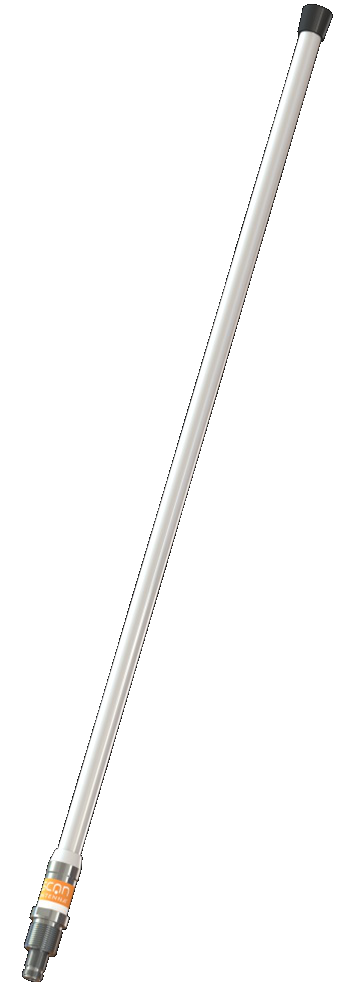

9 dB UHF Fibreglass Antenna 0,84 m (1710-1880 MHz)
Ingen
| Frekvens | 1710 – 1880 MHz |
|---|---|
| Gain | 9 dB (Marine), 5 dBd, 7.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | Approx. 840 mm |

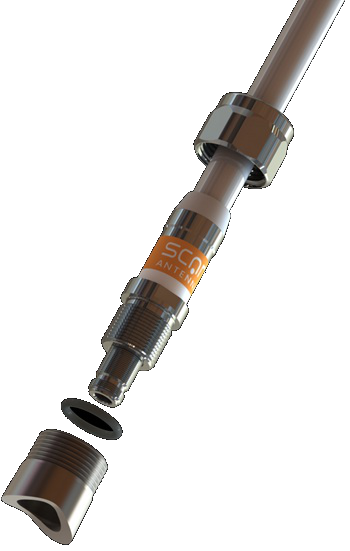

| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 100 W |
| IP-klasse | IP66 |
14189-000 – Antenna only – bulk packing
14189-001 – Antenna only – in Polybag
14189-002 – Antenna only – in Carton tube
14189-431 – Antenna + 1″ Revolving Nut Kit – in Polybag
14189-432 – Antenna + 1″ Revolving Nut Kit – in Carton tube
Ingen
| Frekvens | 1710 – 1880 MHz |
|---|---|
| Gain | 9 dB (Marine), 5 dBd, 7.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | Approx. 840 mm |
| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 100 W |
| IP-klasse | IP66 |
