UHF004 – Broadband Unity Gain Omni Base Station Antenna for the 450 MHz band

Broadband Unity Gain Omni Base Station Antenna for the 450 MHz band

Beskrivelse

Varianter

Downloads

Tilbehør

Beskrivelse

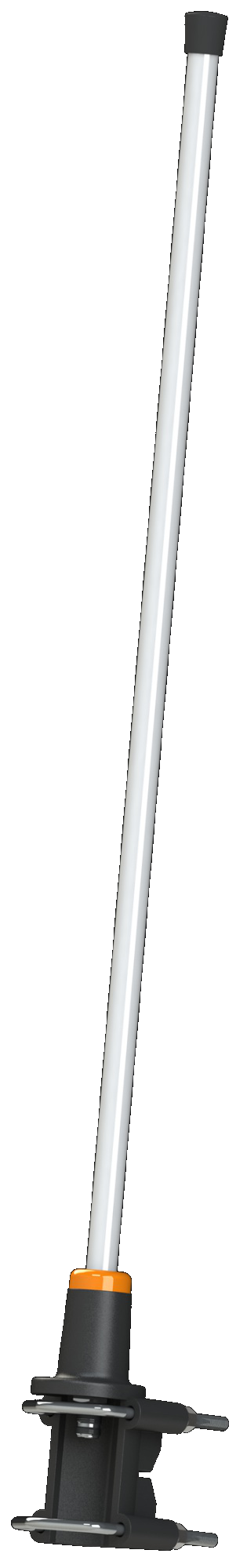

The UHF004 is a lightweight broadbanded UHF omnidirectional base station antenna with integrated multipurpose mounting bracket.

The antenna is sealed in a high-quality glass fiber tube.
The cable can be led either on the outside or along the inside of the mast tube.
Covers the frequency band 330-510 MHz in four models.

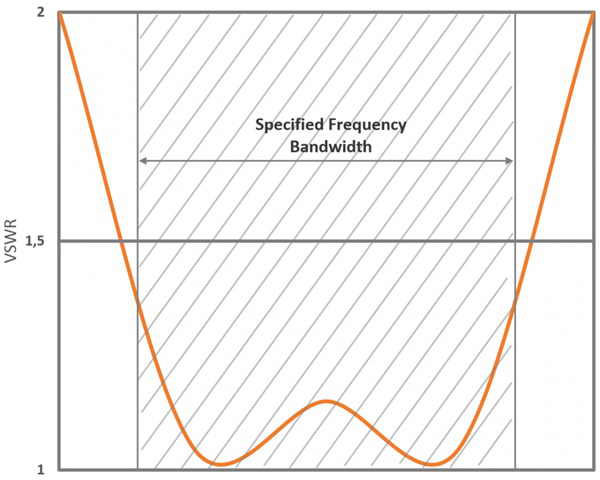

Large bandwidth with respect to both SWR and Gain.
All metal parts in the antenna are DC-grounded.

Frekvens	330 – 380 MHz, 380 – 430 MHz, 420 – 470 MHz, 460 – 510 MHz (A/B/C/D)

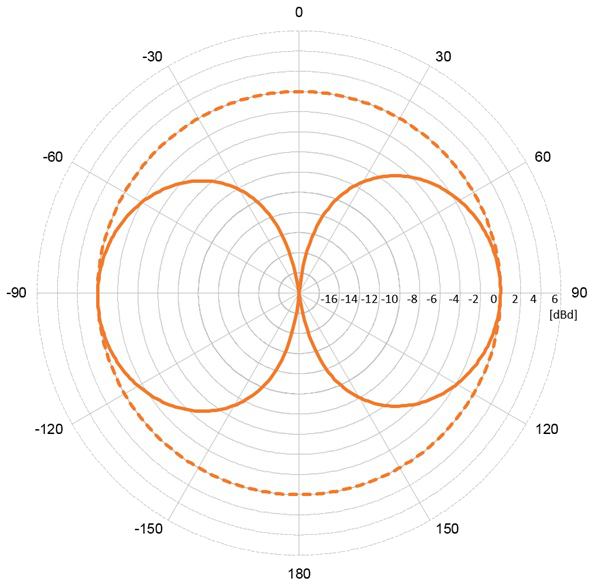

Gain	0 dBd, 2.15 dBi
Stik	N-female
Længde/højde	700 mm
Montering	Fixed Tube Mounting Bracket (included). Wall mount Bolts not included.

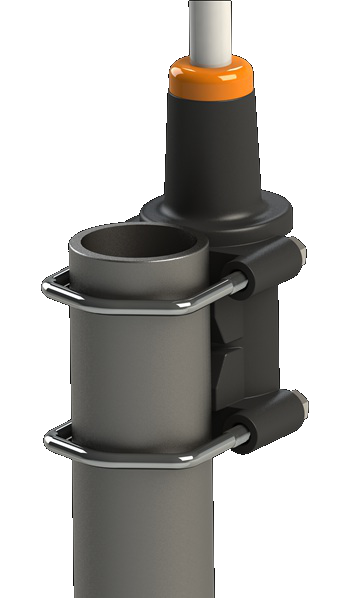

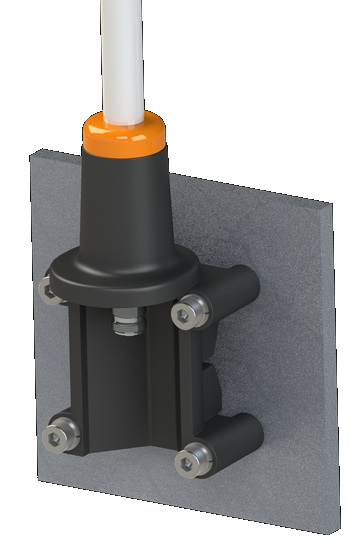

Monteringssted	On Tube (Ø 30 – 60 mm, vertical or horizontal) or Wall mount (mounting hole distance 68.5 mm).
Max. effekt	200 W
IP-klasse	IP66

Varianter

Downloads

Tilbehør

Beskrivelse

Downloads

Beskrivelse

The UHF004 is a lightweight broadbanded UHF omnidirectional base station antenna with integrated multipurpose mounting bracket.

The antenna is sealed in a high-quality glass fiber tube.
The cable can be led either on the outside or along the inside of the mast tube.
Covers the frequency band 330-510 MHz in four models.
Large bandwidth with respect to both SWR and Gain.
All metal parts in the antenna are DC-grounded.

Frekvens	330 – 380 MHz, 380 – 430 MHz, 420 – 470 MHz, 460 – 510 MHz (A/B/C/D)
Gain	0 dBd, 2.15 dBi
Stik	N-female
Længde/højde	700 mm
Montering	Fixed Tube Mounting Bracket (included). Wall mount Bolts not included.
Monteringssted	On Tube (Ø 30 – 60 mm, vertical or horizontal) or Wall mount (mounting hole distance 68.5 mm).
Max. effekt	200 W
IP-klasse	IP66
