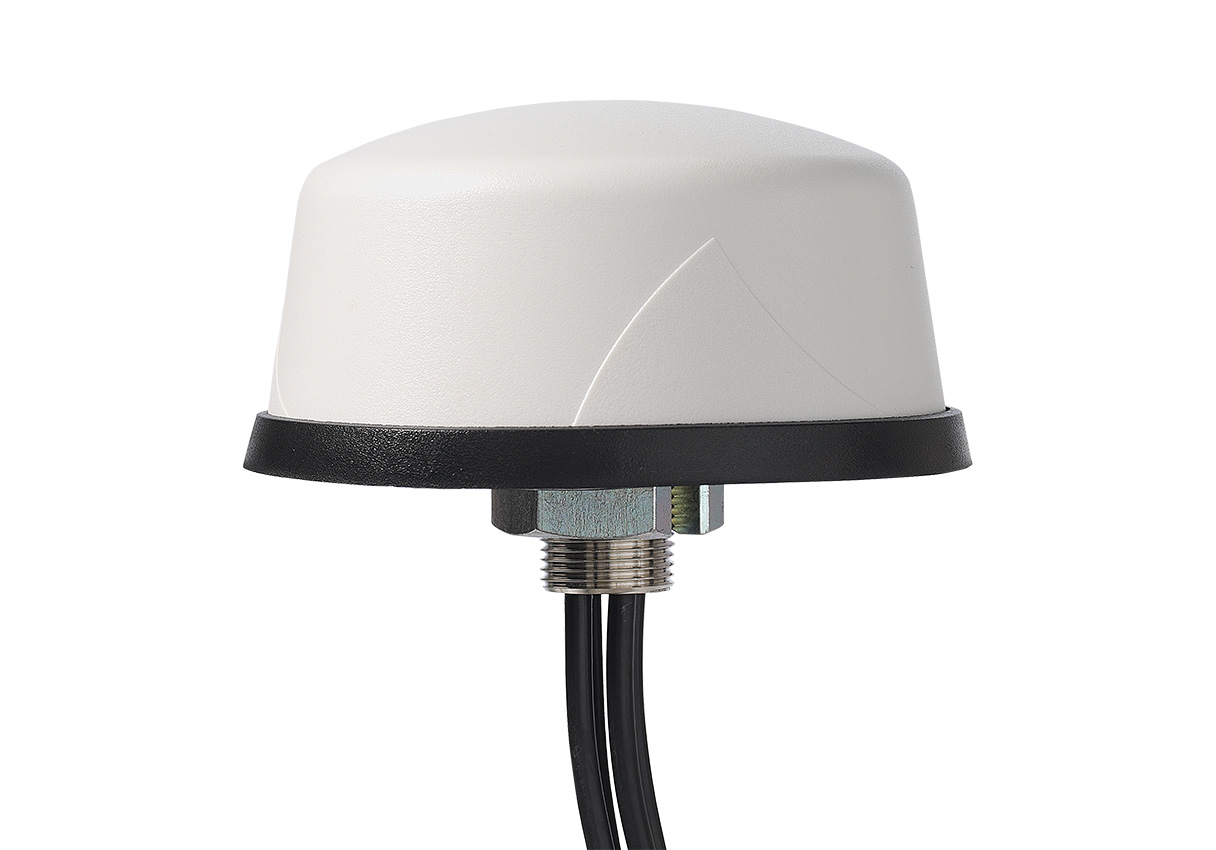

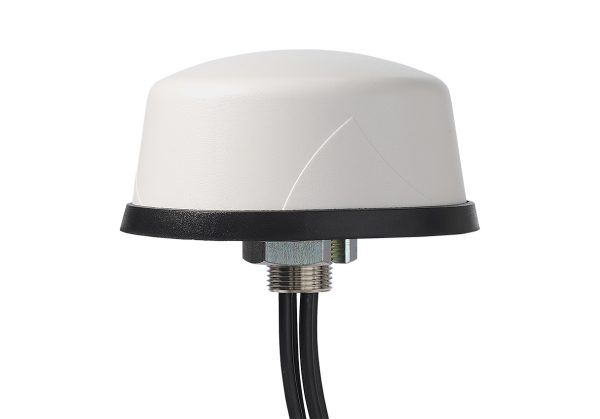

PCTHPMIMO-3-SF – Coach™ WiFi 6E Multiband MIMO Antennas for Permanent Mount Applications

High data rate connectivity for mobile applications

Beskrivelse

Varianter

Downloads

Tilbehør

Beskrivelse

These low-profile, permanent-mount antennas enables high data rate connectivity for fleet, rail, mass transit, public safety, and M2M applications. The platform combines multiple antenna elements to deliver multiband coverage in one IP67-rated housing. A single stud mount cable exit simplifies

Multiband coverage – 2.3-2.8 GHz and 4.9-5.9 GHz frequencies
Maximum RF system efficiency – Dual-band integrated elements are terminated with high performance, low loss RG-58/U stranded cable and high quality connectors
Ease of installation and replacement – Metal stud mount with slotted jam nut provides single cable exit
Low profile – for maximum installation flexibility
Withstands severe environmental conditions – IP67 compliant design protects against water or dust ingress
Selection – UV-resistant white or black housing

Specifikationer

Frekvens	Cellular + Wi-Fi; Wi-Fi 2.4/5 GHz
Gain	0.5 dBi, 1.5 dBi
Stik	SMA Male
Montering	Stud, Through hole
Max. effekt	25 W
IP-klasse	IP67

Modelvarianter

PCTHPMIMO-2-SF

Varianter

Downloads

Tilbehør

Beskrivelse

Downloads

Beskrivelse

Multiband coverage – 2.3-2.8 GHz and 4.9-5.9 GHz frequencies
Maximum RF system efficiency – Dual-band integrated elements are terminated with high performance, low loss RG-58/U stranded cable and high quality connectors
Ease of installation and replacement – Metal stud mount with slotted jam nut provides single cable exit
Low profile – for maximum installation flexibility
Withstands severe environmental conditions – IP67 compliant design protects against water or dust ingress
Selection – UV-resistant white or black housing

Specifikationer

Frekvens	Cellular + Wi-Fi; Wi-Fi 2.4/5 GHz
Gain	0.5 dBi, 1.5 dBi
Stik	SMA Male
Montering	Stud, Through hole
Max. effekt	25 W
IP-klasse	IP67

Modelvarianter

PCTHPMIMO-2-SF
