Multiband Cellular MiMo Antenna
Multiband antenna combining the cellular/mobile GSM(2G), UMTS(3G), LTE(4G), 5G NR(5G) and WiFi frequencies for vessel or land based communication.
| Frekvens | 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2690 MHz, 3300 – 4200 MHz, 4400 – 5000 MHz |
|---|---|
| Gain | -1.0 dBd, 1.15 dBi, 2.0 dB (Marine) (617-960 MHz) 1.0 dBd, 3.15 dBi, 4.0 dB (Marine) (1710-2170, 2300-2690 MHz) 2.0 dBd, 4.15 dBi, 5.0 dB (Marine) (3300-4200, 4400-5000 MHz) |
| Stik | SMA-male (Other types available on request) |
| Kabel | Approx. 1.0 m LTR195 |
| Længde/højde | MiMo5G-2: 455 mm MiMo5G-4: 785 mm (Excluding cables) |
| Montering | Integrated 1-14”NF Thread |

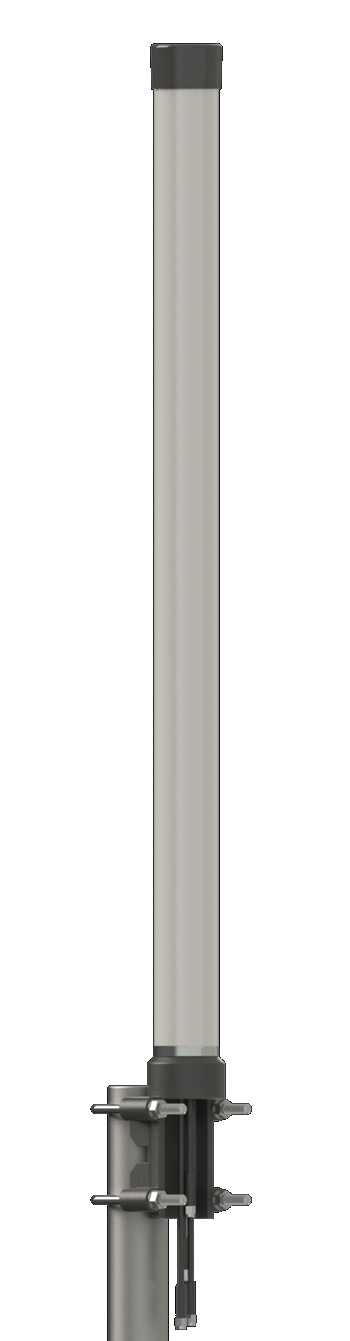

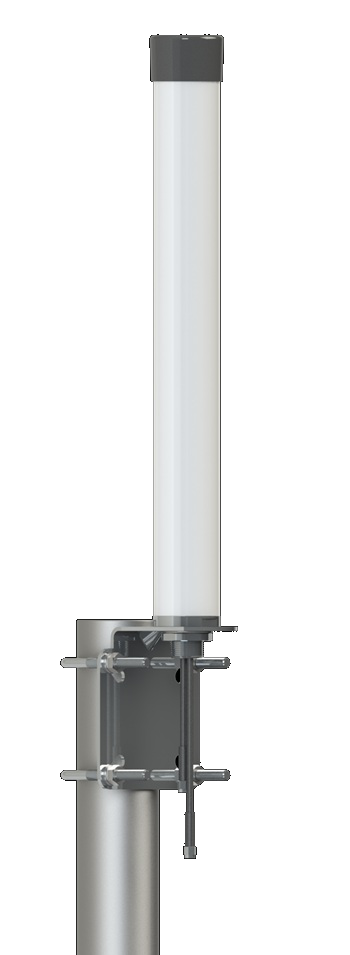

| Monteringssted | On mast or deck (see P/N; 10000-173 & 10000-183) |
| Max. effekt | 10 W |
| IP-klasse | IP65 |

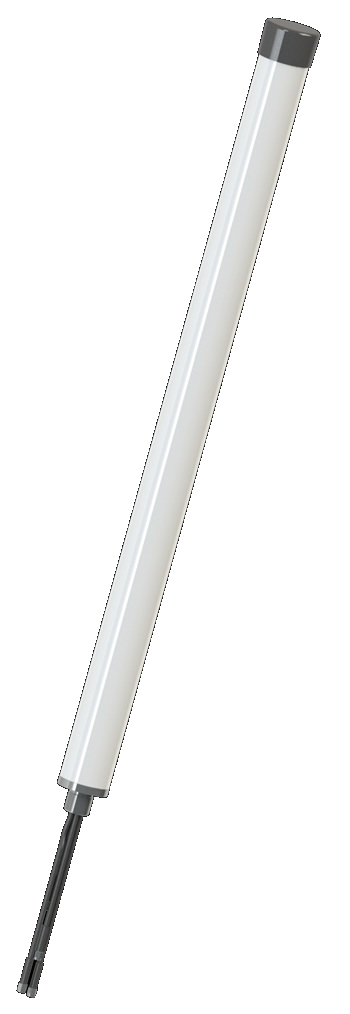

18102-002 – MiMo5G-2 2 x LTR195 + SMA-male

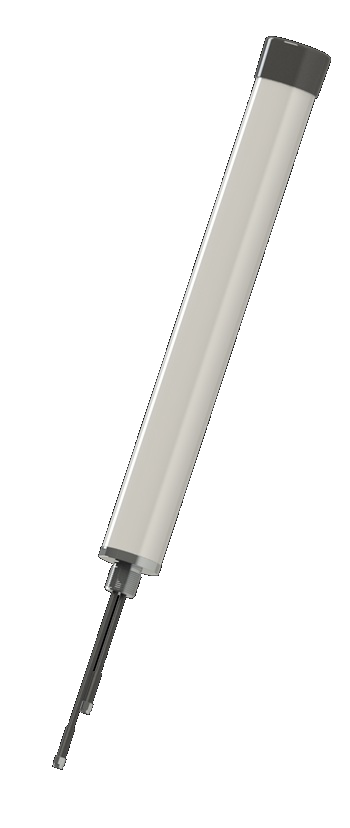

18104-002 – MiMo5G-4 4 x LTR195 + SMA-male
