Varenummer: 24309-002

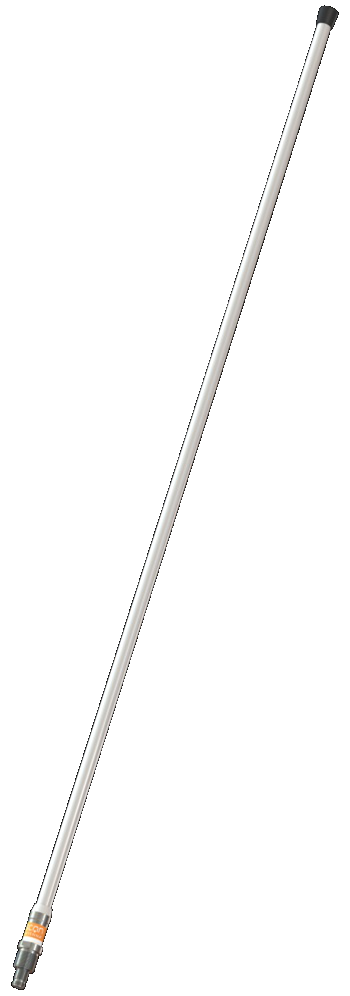

LTE903NB – 3 dBd IoT Fibreglass Antenna (860-930 MHz)

3 dBd IoT Fibreglass Antenna (860-930 MHz)

LTE903NB – 3 dBd IoT Fibreglass Antenna (860-930 MHz)

LTE903NB – 3 dBd IoT Fibreglass Antenna (860-930 MHz) – billede 2

LTE903NB – 3 dBd IoT Fibreglass Antenna (860-930 MHz) – billede 3

LTE903NB – 3 dBd IoT Fibreglass Antenna (860-930 MHz) – billede 4

Beskrivelse

Varianter

Downloads

Tilbehør

Beskrivelse

Ingen

Especially made for LPWAN applications
Supports 868 and 915 MHz
ISM, LoRa, Sigfox and M-Bus
End-fed 1/2 λ coaxial dipole antenna design

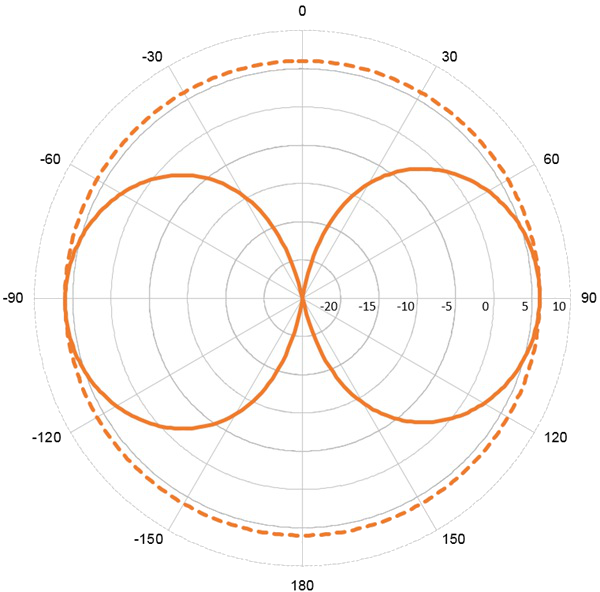

Full omni-directional radiation pattern
No groundplane needed

Specifikationer

Frekvens	860 – 930 MHz
Gain	3 dBd, 5.1 dBi
Stik	N-female
Kabel	No cable supplied
Længde/højde	1000 mm

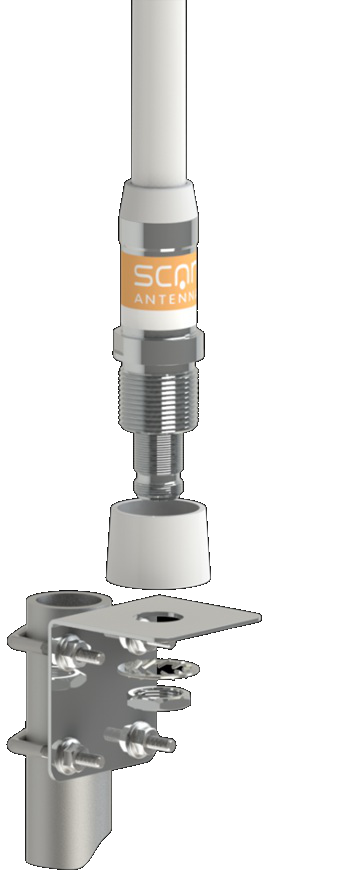

Montering	On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets
Monteringssted	On mast or deck
Max. effekt	200 W
IP-klasse	IP66
