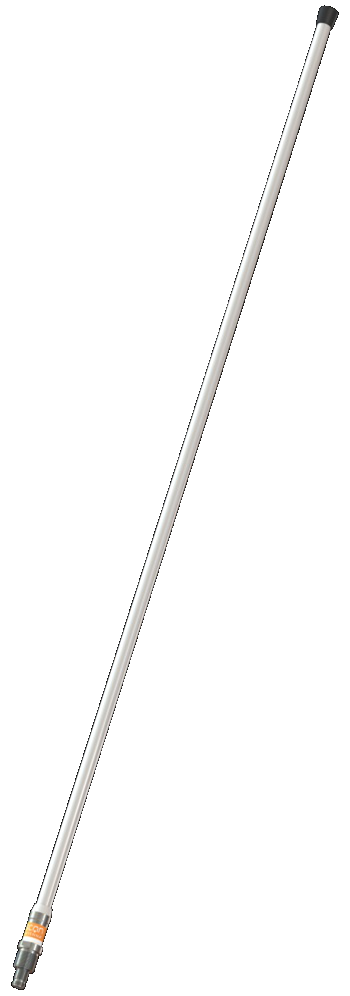

6 dB LTE High Gain Glass Fibre Antenna 1.44 m
This wide-band high-gain antenna is developed for use in both maritime and land environments. The high gain design overcomes poor phone and data coverage in the mobile operator networks (LTE, UMTS & GSM), e.g. along cost lines and in rural areas.

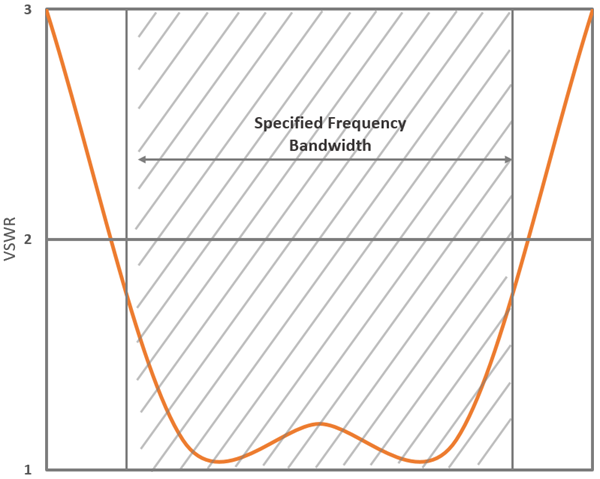

| Frekvens | 790 – 960 MHz (LTE800, GSM850/900, UMTS900) |
|---|---|

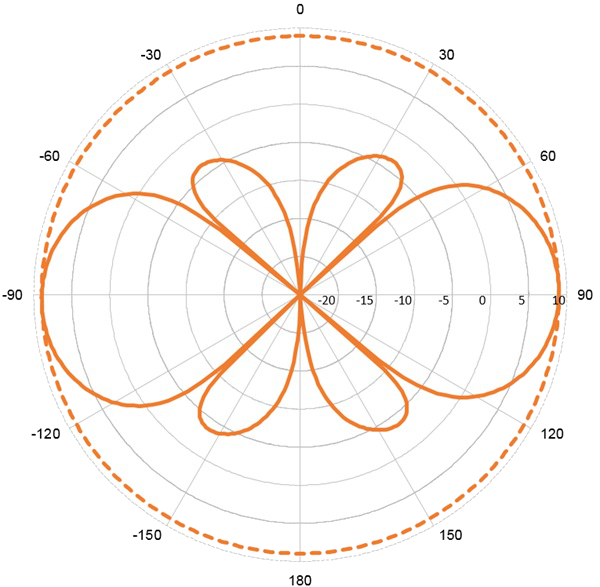

| Gain | 6 dB (Marine), 3 dBd, 5.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | 1440 mm |

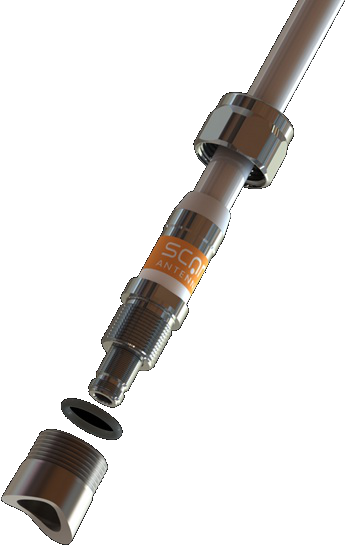

| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 200 W |
| IP-klasse | IP66 |
14086-000 – Antenna only – bulk packing
14086-001 – Antenna only – in Polybag
14086-002 – Antenna only – in Carton tube
14086-431 – Antenna + 1″ Revolving Nut Kit – in Polybag
14086-432 – Antenna + 1″ Revolving Nut Kit – in Carton tube
