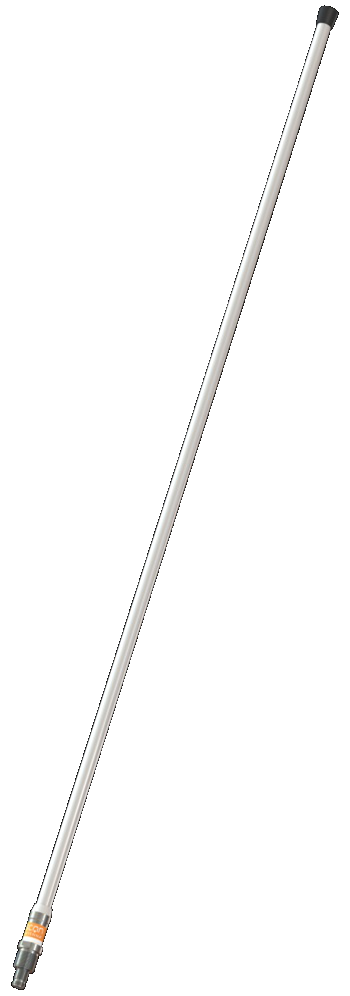

6 dB LTE High Gain Glass Fibre Antenna 1.54 m
This wide-band high-gain antenna is developed for use in both maritime and land environments. The high gain design overcomes poor phone and data coverage in the mobile operator networks (LTE, UMTS & GSM), e.g. along cost lines and in rural areas.
| Frekvens | 725 – 930 MHz ( LTE700, GSM750/810/850, UMTS800/850) |
|---|---|
| Gain | 6 dB (Marine), 3 dBd, 5.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | 1540 mm |

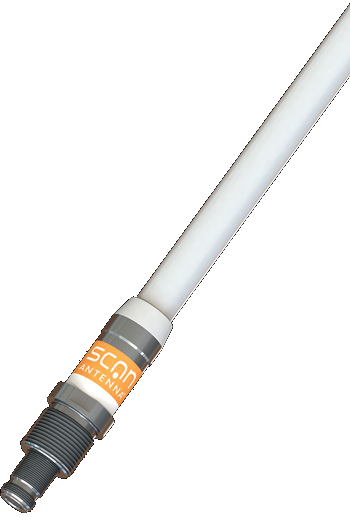

| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 200 W |
| IP-klasse | IP66 |
14076-000 – Antenna only – bulk packing
14076-001 – Antenna only – in Polybag
14076-002 – Antenna only – in Carton tube
14076-431 – Antenna + 1″ Revolving Nut Kit – in Polybag
14076-432 – Antenna + 1″ Revolving Nut Kit – in Carton tube
