Compact passive antenna
Ingen
| Frekvens | 1616 – 1626.5 MHz (L-Band) |
|---|---|
| Gain | 2 dBic |
| Stik | TNC-female |
| Kabel | See “Part No.” below |
| Længde/højde | 111 mm |
| Montering | Mounts on any US-style Mounting Bracket with 1″-14NF threaded stud |
| Monteringssted | On marine vessel or land-based vehicle |
| IP-klasse | IP66 |

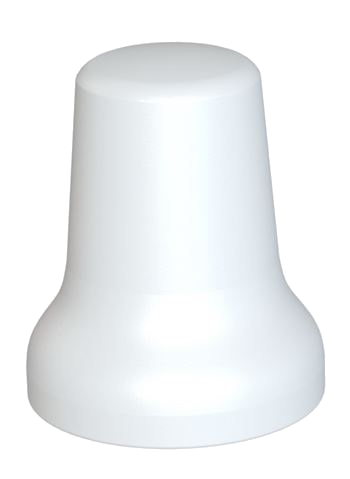

65900-003 – Antenna only – in hardbox

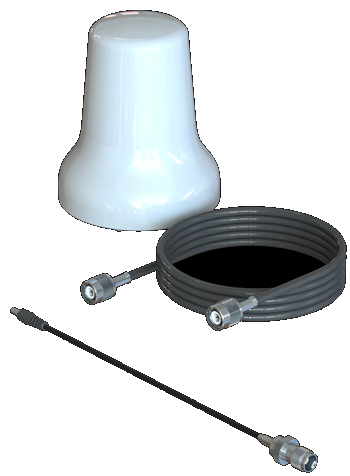

65900-013 – Complete kit for Iridium GO! (Antenna + Adapter Cable + 5 m cable) – in hardbox
65900-023 – Complete kit for Iridium GO! (Antenna + Adapter Cable + 8 m cable) – in hardbox
91006-011 – Adapter Cable for Iridium GO! (150 mm cable + TNC- female) – in polybag

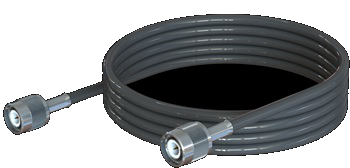

91005-010 – Cable 5 m LTR195 TNC(m) + TNC(m) – bulk packing
91005-020 – Cable 8 m LTR240 TNC(m) + TNC(m) – bulk packing
91005-030 – Cable 10 m LTR400 TNC(m) + TNC(m) – bulk packing
91005-040 – Cable 15 m LTR400 TNC(m) + TNC(m) – bulk packing
