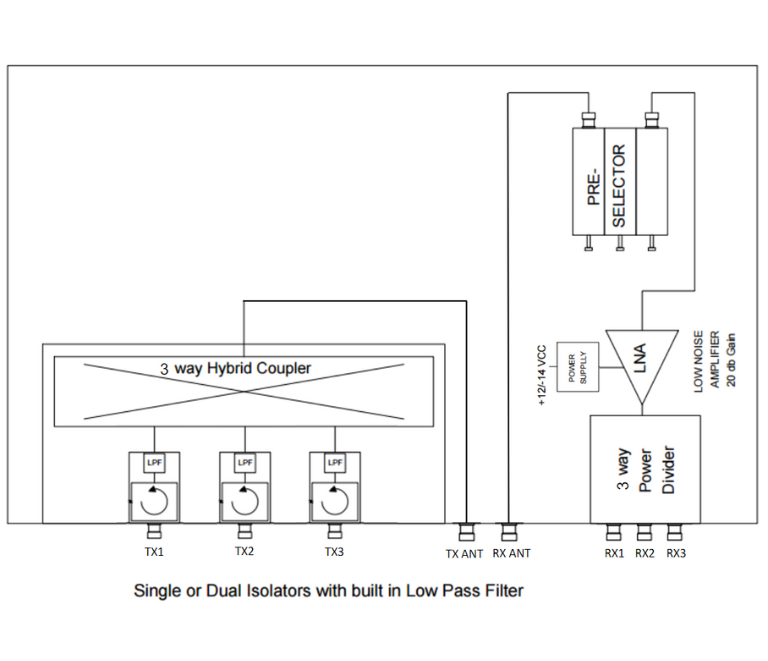

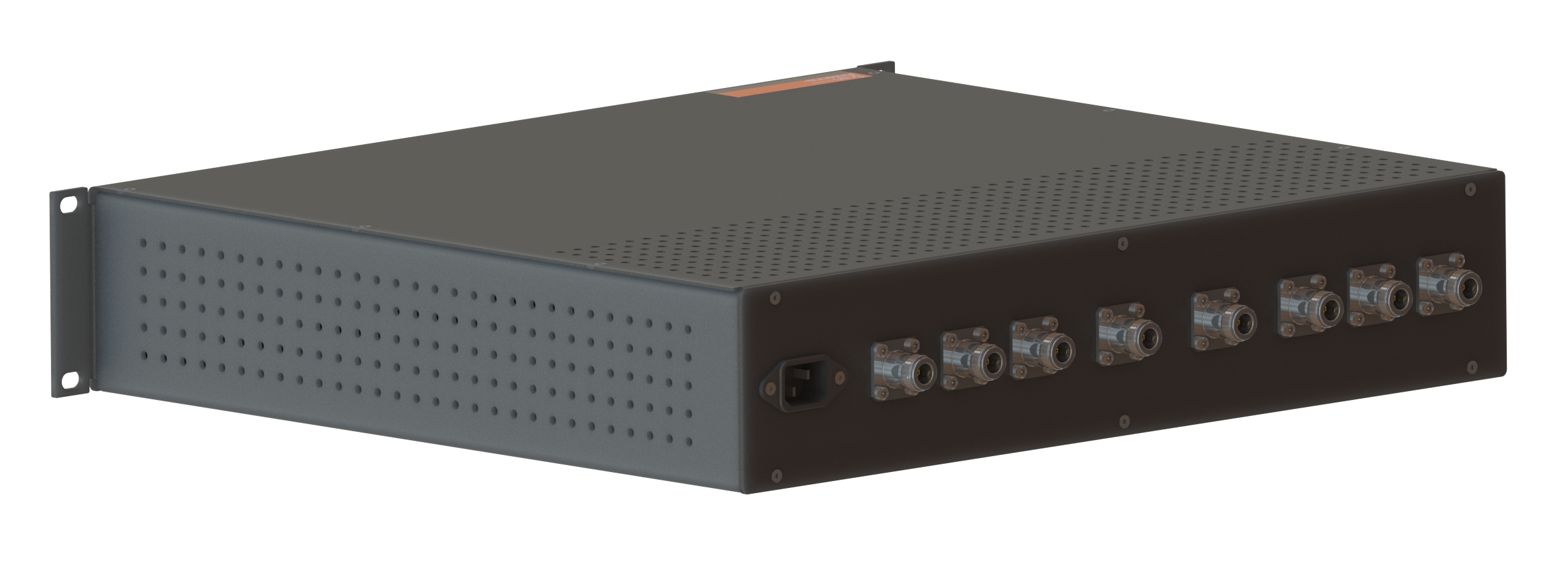

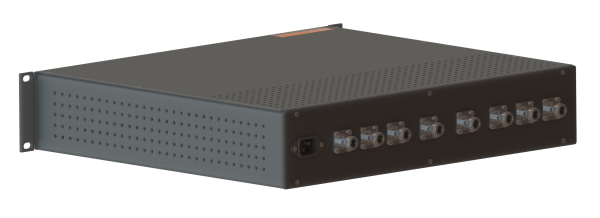

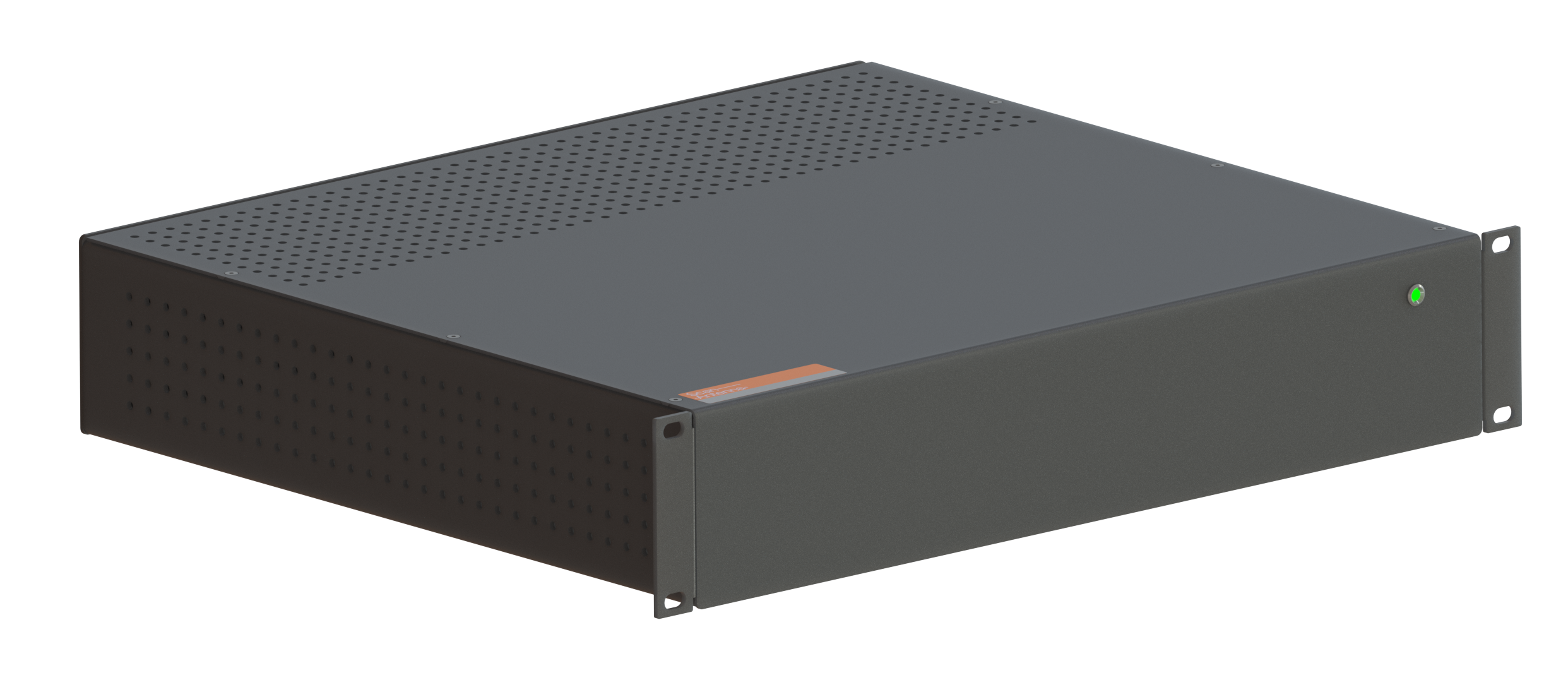

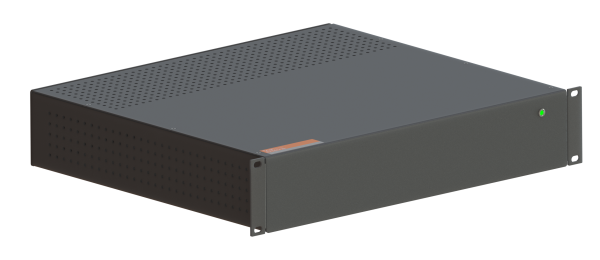

HCMR450-3 series is a UHF TX/RX hybrid combiner with single or dual isolators used with two antennas, one RX and one TX or to be used with external duplex filter.

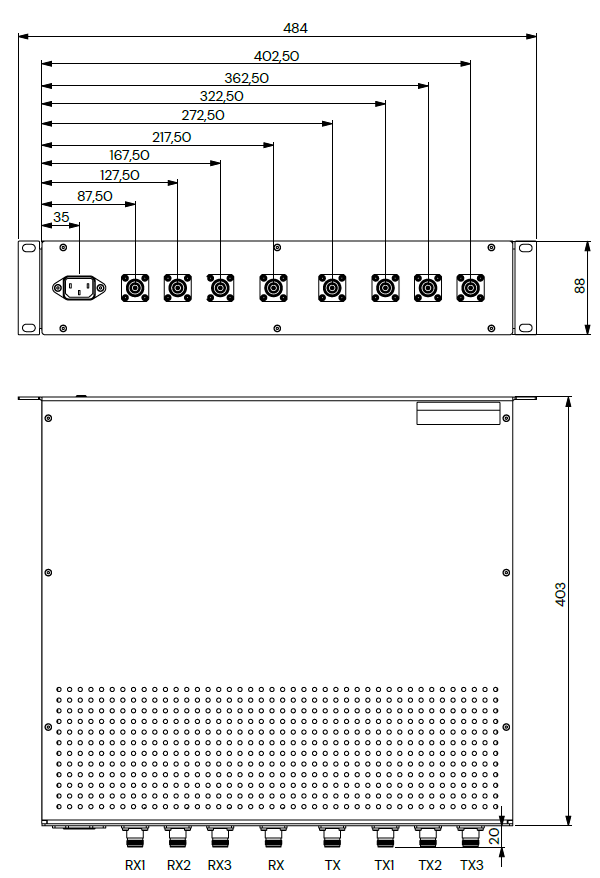

• Standard EIA 19” tray, 400 mm depth and 2HU in a closed cabinet. Comes with an integrated power indicating light emitting diode (LED) Integrated power supply, 100-240 VAC; 50/60 Hz Tuned to customer specified frequencies, needs to be specified when ordering Option: Redundant power supply can be provided!
