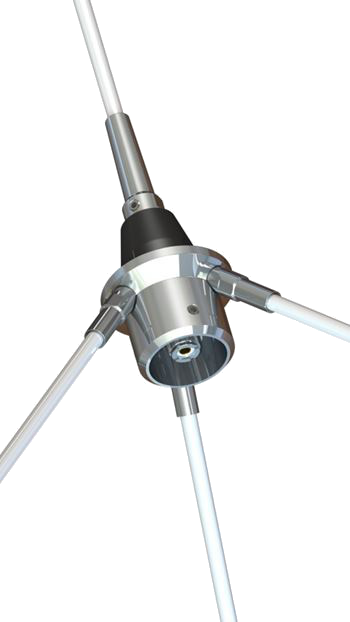

Full length Customer tuneable Ground Plane Antenna
Ingen
| Frekvens | 60 – 500 MHz (Antenna is tuneable within these frequencies by cutting elements (Cutting Table included)) |
|---|---|
| Gain | 0 dBd, 2.1 dBi |
| Stik | UHF-female |
| Kabel | No cable supplied |
| Længde/højde | Approx. 2200 mm (@ 60 MHz) |
| Montering | On pole Ø 38 mm (Not supplied) |
| Monteringssted | On tower etc. |
| Max. effekt | 400 W |
| IP-klasse | IP66 |
Ingen
| Frekvens | 60 – 500 MHz (Antenna is tuneable within these frequencies by cutting elements (Cutting Table included)) |
|---|---|
| Gain | 0 dBd, 2.1 dBi |
| Stik | UHF-female |
| Kabel | No cable supplied |
| Længde/højde | Approx. 2200 mm (@ 60 MHz) |
| Montering | On pole Ø 38 mm (Not supplied) |
| Monteringssted | On tower etc. |
| Max. effekt | 400 W |
| IP-klasse | IP66 |
