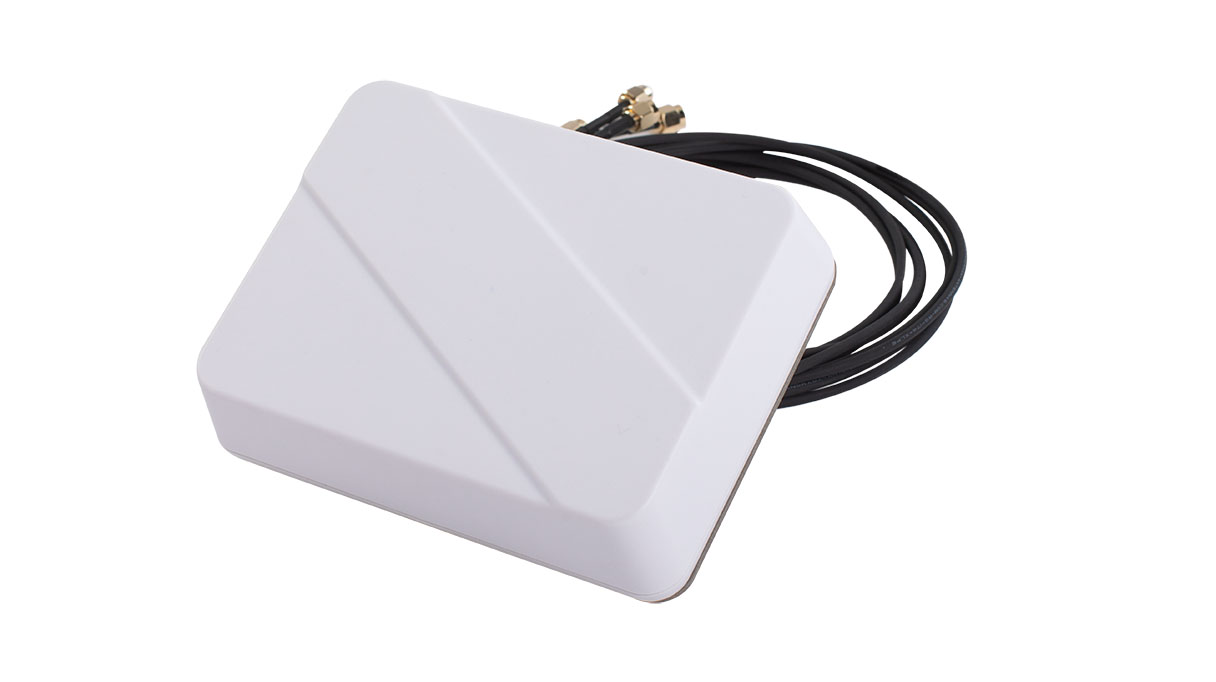

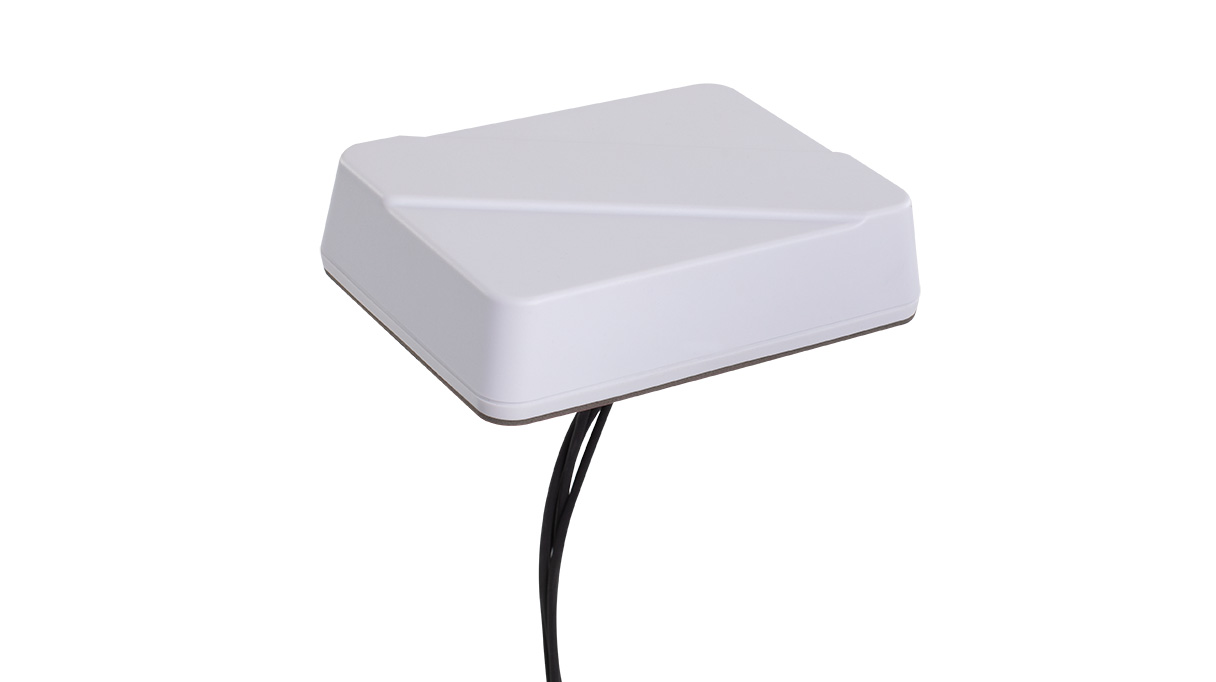

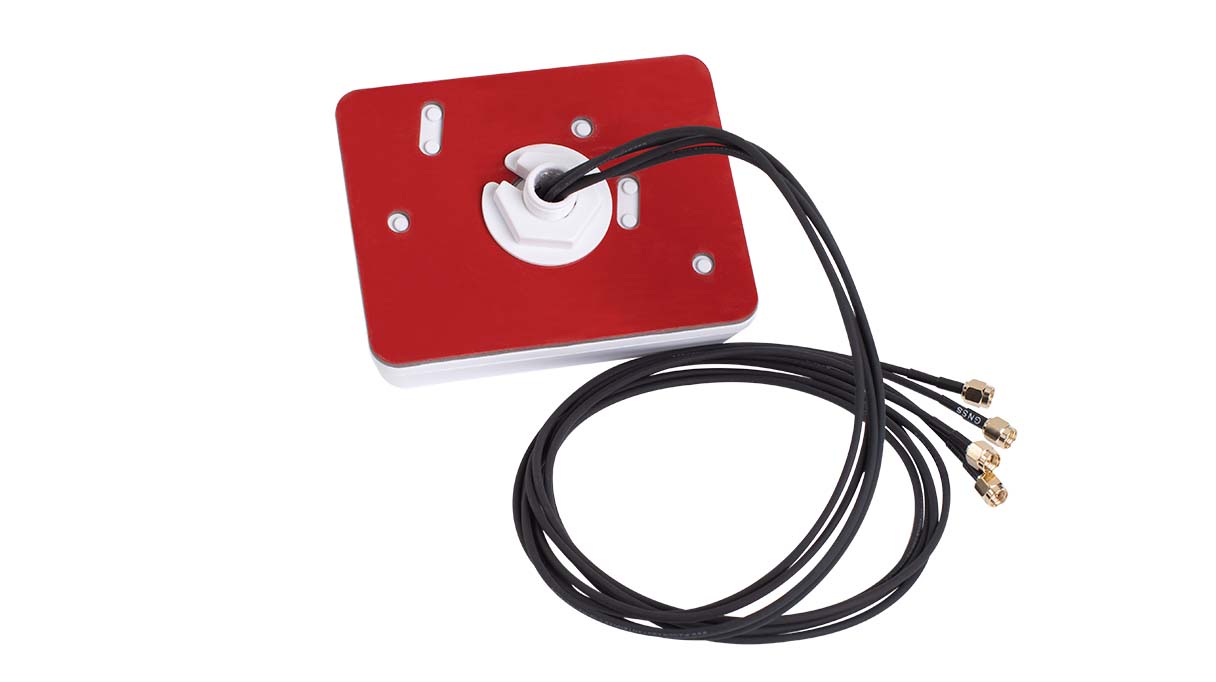

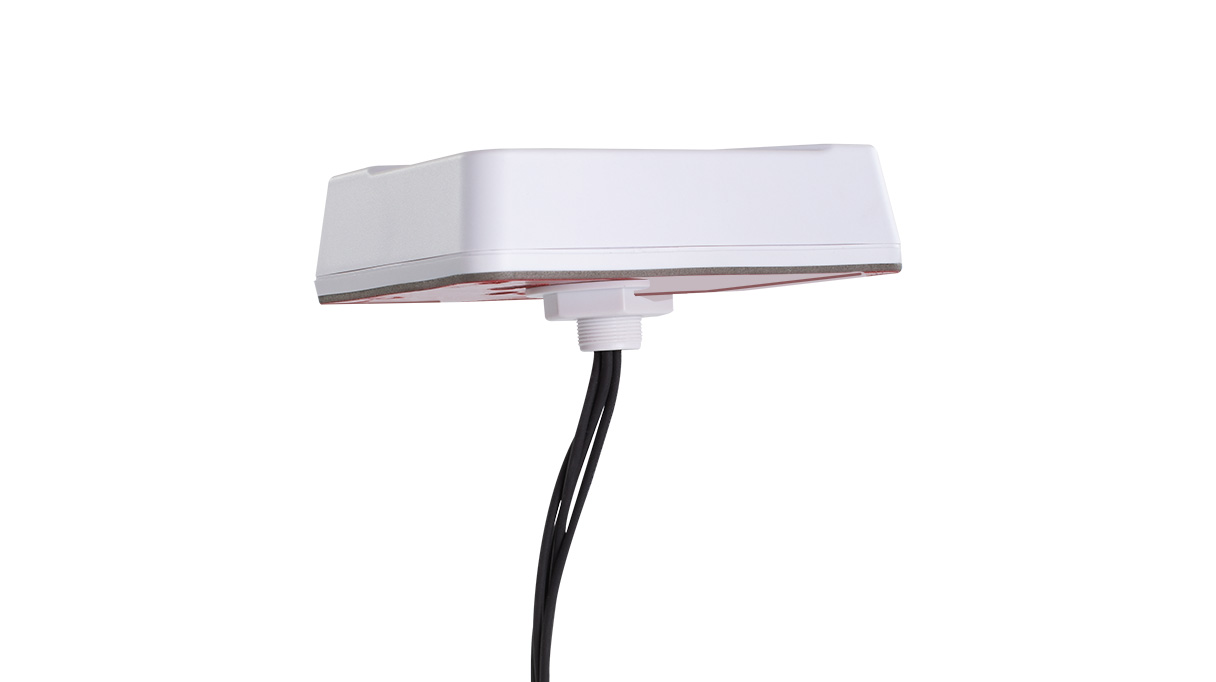

The Medallion™ II 5G FR1 low profile antenna is ideal for cabinet mount industrial IoT and EV charging applications. This GNSS multiband antenna includes two 5G FR1 ready ports, and an optional dual band 2.4/5 GHz port for WiFi coverage. Its proprietary, built-in GNSS technology features superior out-of-band rejection filtering for optimal operation with industrial IoT wireless networks. This antenna platform is housed in a rugged, UV-stable housing, available in black or white color options.

• Dual cellular ports for 5G FR1 networks, including CBRS bands
• Low Profile 1-1/3-inch-tall housing for permanent mount installations with limited overhead clearance
• GNSS compatibility, covering global systems: (GPS L1; GALILEO E1; GLONASS L1; QZSS L1; BEIDOU B1)
• Optional dual band 2.4/5 GHz WiFi port
• Suitable for vehicular rooftop outdoor or indoor applications
• Durable, UV-stable white or black radome options
• Ingress protection: IPX7 rating

Specifikationer

Modelvarianter

• GLLPDLTE-B, GLLPDLTEWI-W, GLLPDLTEWI-B

GLLPDLTE-B
GLLPDLTEWI-W
GLLPDLTEWI-B
