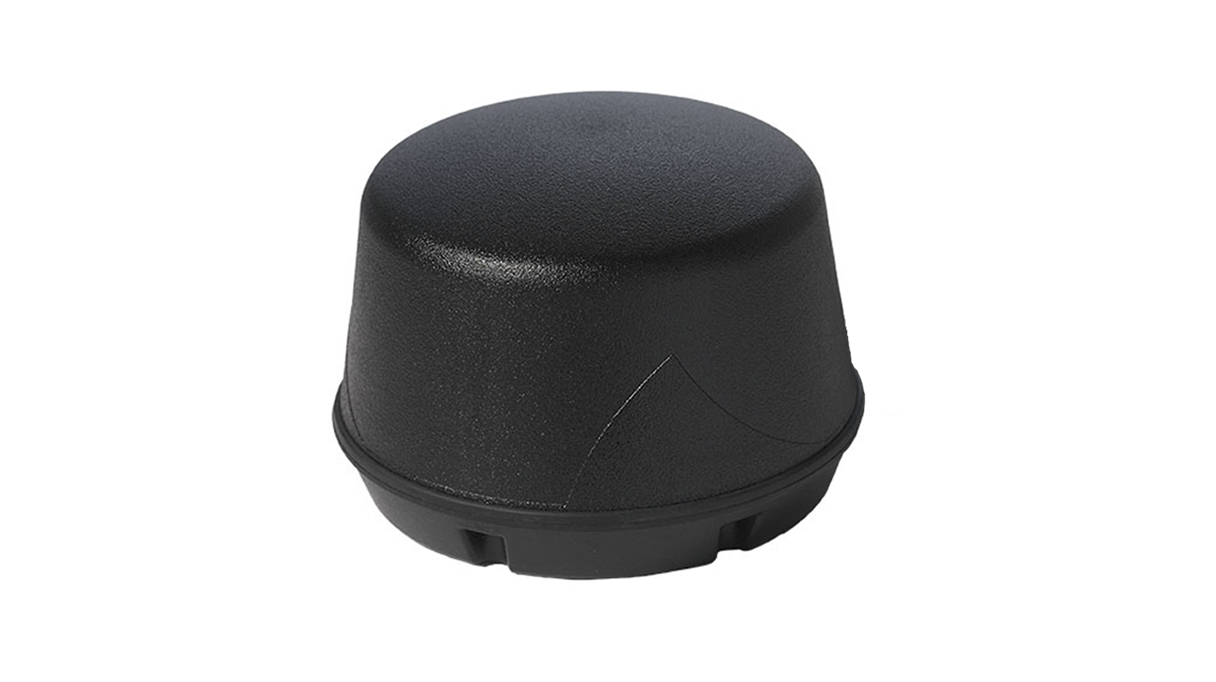

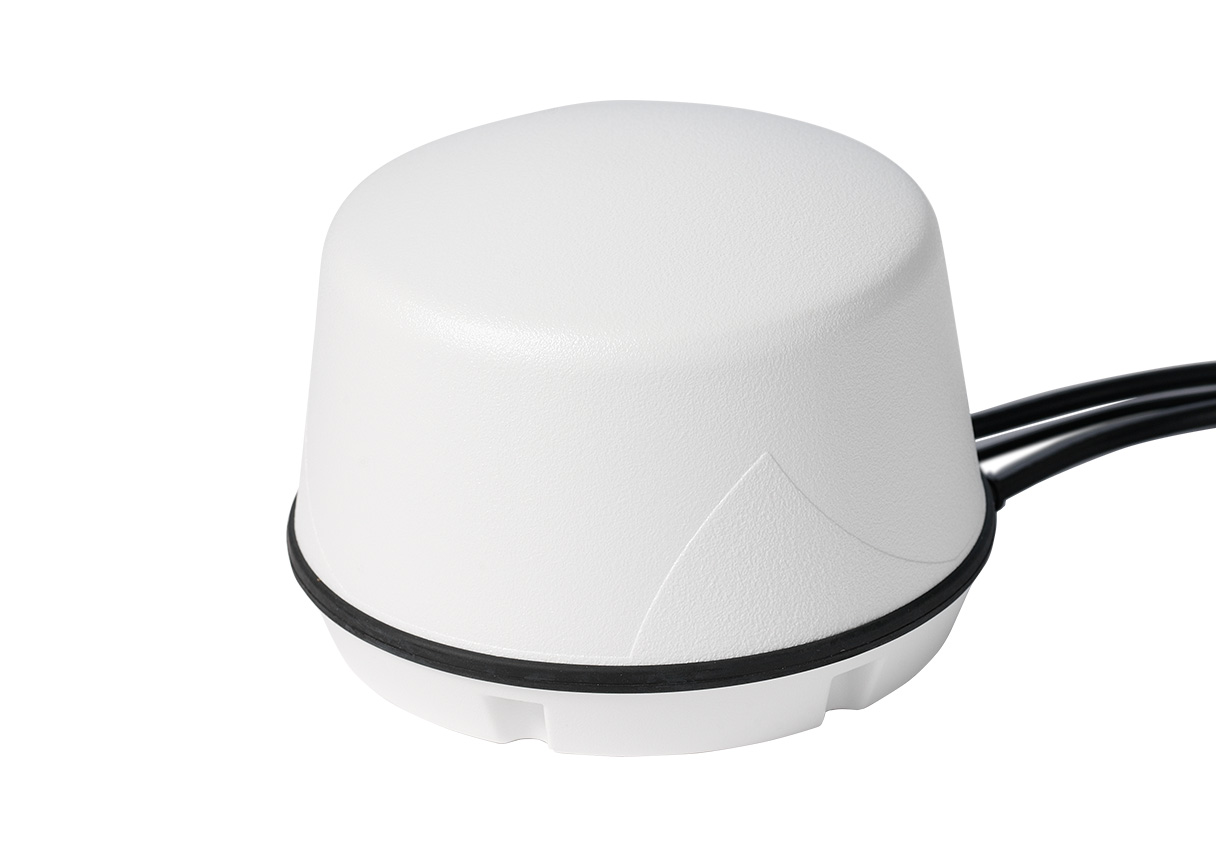

These magnetically mounted antennas deliver optimal LTE and dual-band WiFi coverage in a single, low-profile housing. The design incorporates PCTEL’s unique high rejection GPS/GLONASS technology for high performance and support of carrier voice and data networks.

• No tune, multiband coverage – Dual 4G LTE, dual 802.11ac WiFi, GPS L1, and GLONASS L1 frequencies
• Magnetically mounted – Via heavy-duty internal rare earth magnets
• Dependable – Rubber pad prevents slippage, protects mounting surface
• Low profile – For overhead clearance
• RF system efficiency – High performance, low loss cable and high quality connectors
• Superior out-of-band rejection – Proprietary filtering design allows wideband coverage for all GNSS frequencies
• Withstands severe environmental conditions –IP67 compliant design protects against water or dust ingress

Specifikationer

Modelvarianter

• GLHPDM3-SF-MM, GLHPDLTE-SF-MM

GLHPDM3-SF-MM
GLHPDLTE-SF-MM
