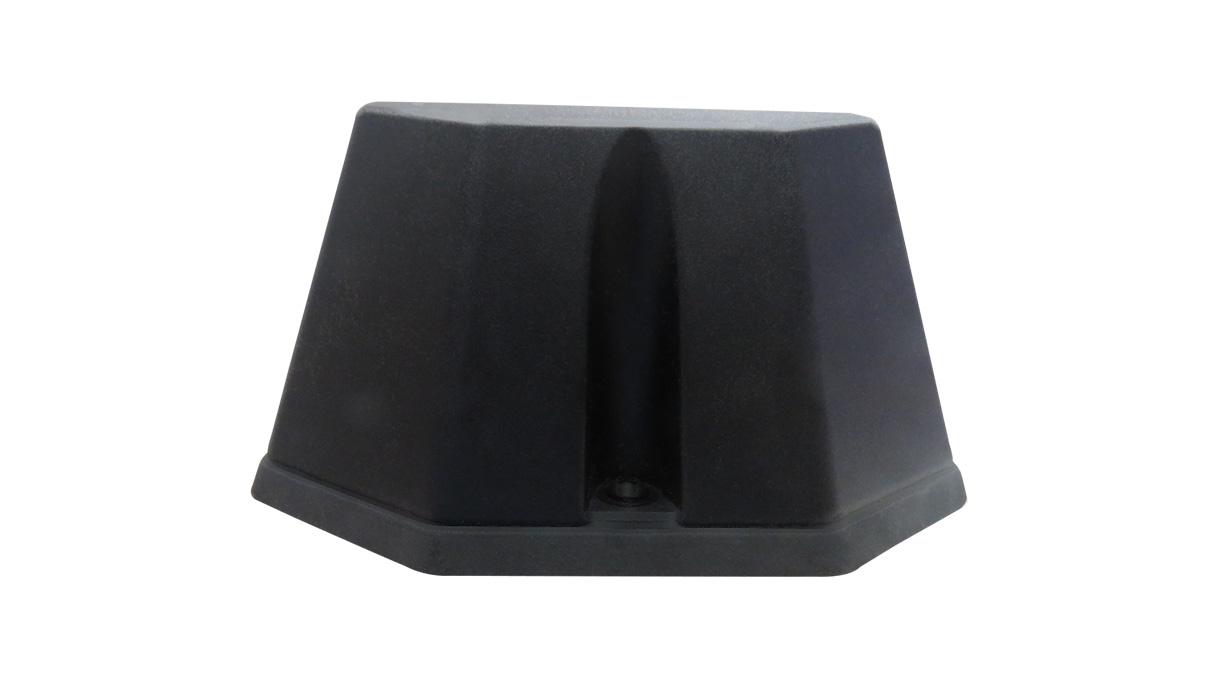

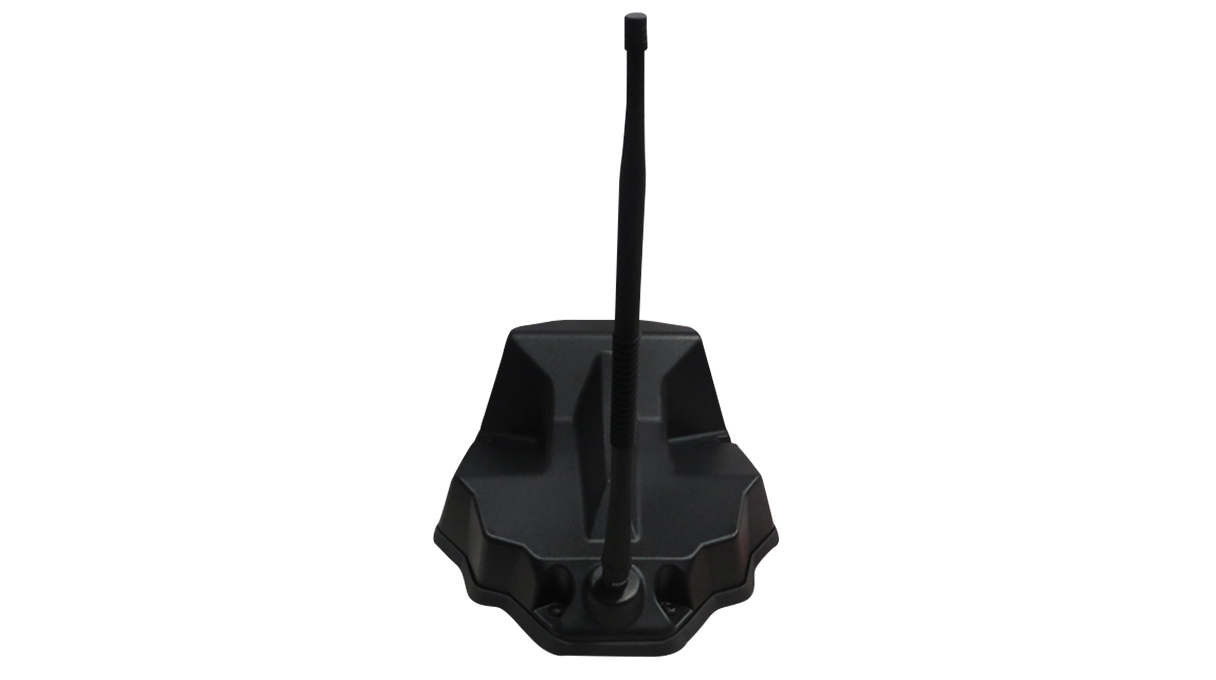

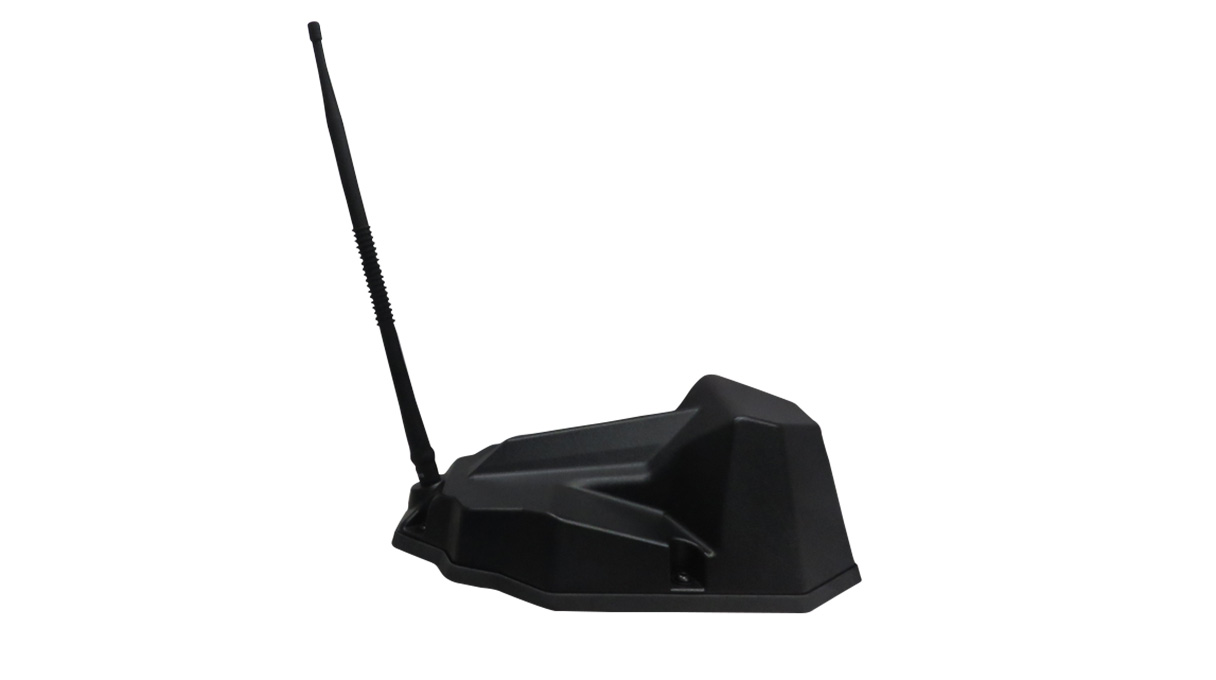

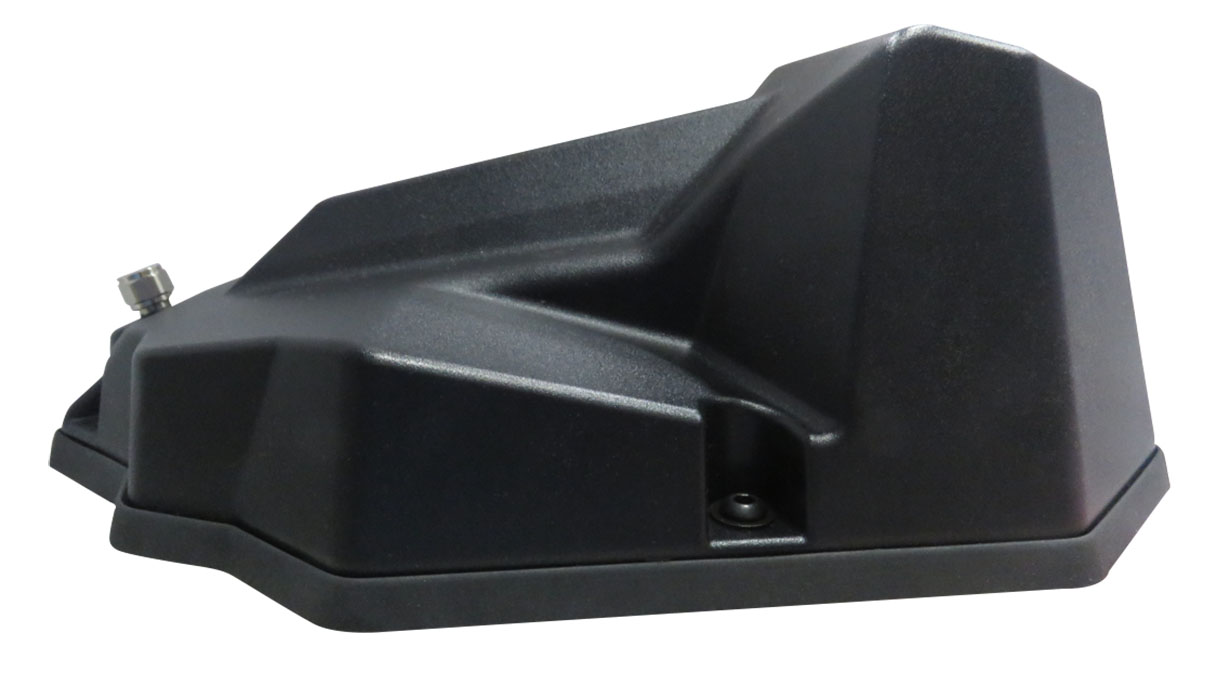

Configurable multiband 10:1 antenna for rail applications
The CMTA configurable multiband through hole mounted antenna (CMTA) platform for up to 10×1 antenna functions supports the high speed requirements of complex railway communication systems used in Intelligent Transportation Systems (ITS). Featuring multi-spectrum coverage of global GNSS systems, this antenna provides compliance with Hy-Rail Limits Compliance System (HLCS) standards. Proprietary high-rejection multi-GNSS technology enables high precision tracking and asset management for maximum safety and reliability.
| Frekvens | Cellular + Wi-Fi; 4G/LTE; 5G (600 MHz-6 GHz); GNSS + Cellular + Wi-Fi; GNSS + Wi-Fi; Wi-Fi 2.4/5 GHz |
|---|---|
| Gain | -8 dBic, -7 dBic, -6 dBic, -5 dBic, -4 dBic, 0 dBic, 1 dBic, 2 dBic |
| Stik | SMA |
| Montering | Through hole |
| Max. effekt | 35 W |
| IP-klasse | IP67 |
