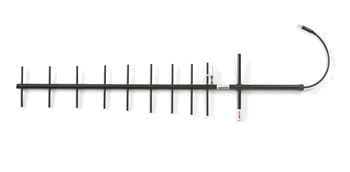

LTE 850 MHz Yagi Antenna Series
BY80-XG is a family of LTE 850 MHz Yagi Antennas
| Frekvens | 800 – 900 MHz |
|---|---|
| Gain | BY80-10G: 10 dBd, 12.15 dBi BY80-12G: 12 dBd, 14.15 dBi |
| Stik | Type N-female |
| Kabel | Approx. 0.5 m RG213/U |
| Længde/højde | BY80-10G: 850 x 240 mm BY80-12G: 1250 x 240 mm |
| Montering | Fixed Tube Bracket in Galvanized Iron (included) |
| Monteringssted | On tube (Ø 20 – 50 mm, vertical or horizontal) |
| Max. effekt | 150 Watt |
BY80-10G – 10 dBd, 12.15 dBi In Box
BY80-12G – 12 dBd, 14.15 dBi In Box
BY80-XG is a family of LTE 850 MHz Yagi Antennas
| Frekvens | 800 – 900 MHz |
|---|---|
| Gain | BY80-10G: 10 dBd, 12.15 dBi BY80-12G: 12 dBd, 14.15 dBi |
| Stik | Type N-female |
| Kabel | Approx. 0.5 m RG213/U |
| Længde/højde | BY80-10G: 850 x 240 mm BY80-12G: 1250 x 240 mm |
| Montering | Fixed Tube Bracket in Galvanized Iron (included) |
| Monteringssted | On tube (Ø 20 – 50 mm, vertical or horizontal) |
| Max. effekt | 150 Watt |
