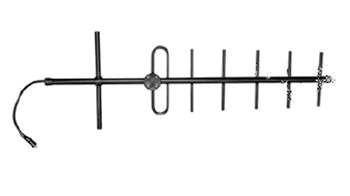

UHF 450 MHz Seven element Yagi Antenna
BY70-7G is a 7 element Yagi antenna with 10 dBd Gain.
| Frekvens | T: 380 – 430 MHz 400 – 475 MHz |
|---|---|
| Gain | 10 dBd, 12.15 dBi |
| Stik | Type N-female |
| Kabel | Approx. 0.5 m RG213/U |
| Længde/højde | 1300 x 450 mm |
| Montering | Fixed Tube Bracket in Galvanized Iron (included – P05/01) |
| Monteringssted | On tube (Ø 27 – 50 mm, vertical or horizontal) |
| Max. effekt | 150 Watt |
BY70-10GT – 380 – 430 MHz In Box
BY70-10G – 400 – 475 MHz In Box
BY70-7G is a 7 element Yagi antenna with 10 dBd Gain.
| Frekvens | T: 380 – 430 MHz 400 – 475 MHz |
|---|---|
| Gain | 10 dBd, 12.15 dBi |
| Stik | Type N-female |
| Kabel | Approx. 0.5 m RG213/U |
| Længde/højde | 1300 x 450 mm |
| Montering | Fixed Tube Bracket in Galvanized Iron (included – P05/01) |
| Monteringssted | On tube (Ø 27 – 50 mm, vertical or horizontal) |
| Max. effekt | 150 Watt |
