VHF Low 80 MHz Three element Yagi Antenna

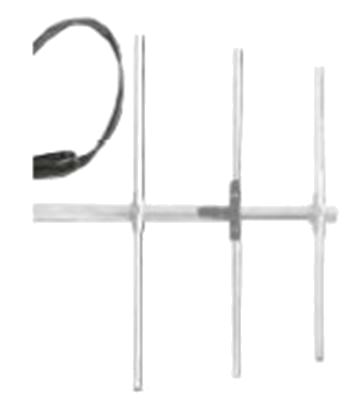

BY4-6G is a 3 element Yagi antenna with 6 dBd Gain.
| Frekvens | L: 66-77 MHz H: 77-88 MHz |
|---|---|
| Gain | 6 dBd, 8.15 dBi |
| Stik | Type N-female |
| Kabel | Approx. 2.5 m RG213/U |
| Længde/højde | 2000 x 2120 mm |
| Montering | Fixed Tube Bracket in Galvanized Iron (included) |
| Monteringssted | On tube (Ø 20 – 65 mm, vertical or horizontal) |
| Max. effekt | 150 Watt |
BY4-6GL – 66 – 76 MHz In Box
BY4-6GH – 75 – 85 MHz In Box
BY4-6G is a 3 element Yagi antenna with 6 dBd Gain.
| Frekvens | L: 66-77 MHz H: 77-88 MHz |
|---|---|
| Gain | 6 dBd, 8.15 dBi |
| Stik | Type N-female |
| Kabel | Approx. 2.5 m RG213/U |
| Længde/højde | 2000 x 2120 mm |
| Montering | Fixed Tube Bracket in Galvanized Iron (included) |
| Monteringssted | On tube (Ø 20 – 65 mm, vertical or horizontal) |
| Max. effekt | 150 Watt |
