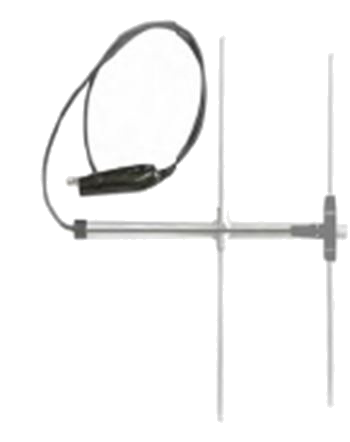

VHF Low 80 MHz Two element Yagi Antenna
BY4-3G is a 2 element Yagi antenna with 3 dBd Gain.
| Frekvens | L: 66 – 77 MHz M: 68 – 82 MHz H: 77 – 88 MHz |
|---|---|
| Gain | 3.0 dBd, 5.15 dBi |
| Stik | Type N-female |
| Kabel | Approx. 2.5 m RG213/U |
| Længde/højde | 2000 x 2110 mm |
| Montering | Fixed Tube Bracket in Galvanised Iron (included) |
| Monteringssted | On Tube (Ø 20- 65 mm, vertical or horizontal) |
| Max. effekt | 150 Watt |
BY4-3GL – 66 – 77 MHz In Box
BY4-3GM – 68 – 82 MHz In Box
BY4-3GH – 77 – 88 MHz In Box
