VHF 150 MHz Two element Yagi Antenna

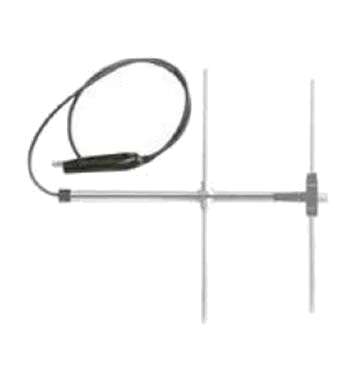

BY2-3G is a 2 element Yagi antenna with 3 dBd Gain.
| Frekvens | L: 136 – 156 MHz H: 154- 175 MHz HH: 174 – 188 MHz |
|---|---|
| Gain | 3.0 dBd, 5.15 dBi |
| Stik | Type N-female |
| Kabel | Approx. 2.5 m RG213/U |
| Længde/højde | 1100 x 1000 mm |
| Montering | Fixed Tube Bracket in Galvanized Iron (included – P05/01) |
| Monteringssted | On tube (Ø 20 – 65 mm, vertical or horizontal) |
| Max. effekt | 150 Watt |
BY2-3GL – In box (136-156 MHz)
BY2-3GH – In box (154-175 MHz)
BY2-3GHH – In box (174-188 MHz)
