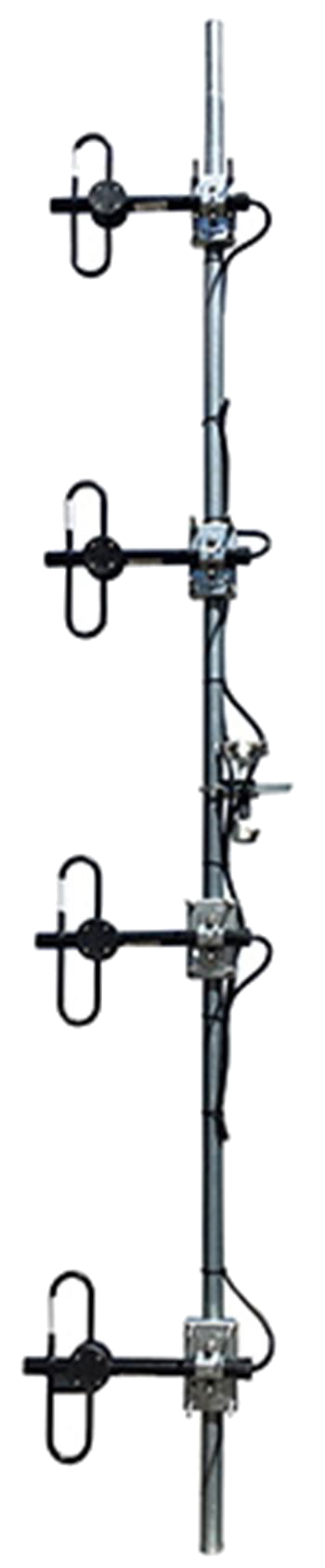

UHF 6 dBd Stacked Dipole Antenna
Stacked Center Fed UHF Dipole Antenna for PMR radios and other applications.
| Frekvens | 380 – 430 MHz, 400 – 450 MHz, 440 – 480 MHz (AIR/L/H) |
|---|---|
| Gain | 6 dBd, 8.15 dBi |
| Stik | N-female |
| Kabel | RG213/U |
| Længde/højde | Length: 3000 mm Width: 400 mm |
| Montering | Fixed Tube Mounting Bracket (included) |
| Monteringssted | On Mast (Ø 27 – 60 mm), mast included |
| Max. effekt | 300 W |
28604-003L – In box (375 – 450 MHz)
28604-003H – In box (440 – 512 MHz)
