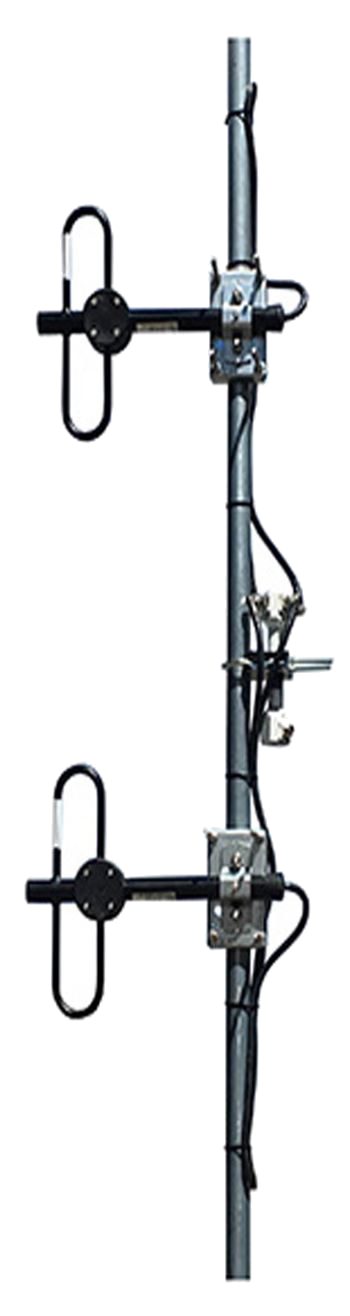

UHF 3-5 dBd Stacked Dipole Antenna
Stacked Center Fed UHF Dipole Antenna for PMR radios and other applications.
| Frekvens | 380 – 430 MHz, 400 – 450 MHz, 440 – 480 MHz (T/L/H) |
|---|---|
| Gain | 3 dBd, 5.15 dBi (1/4 λ distance to mast) 5 dBd, 7.15 dBi (3/8 λ distance to mast) |
| Stik | N-female |
| Kabel | RG213/U |
| Længde/højde | 1300 mm |
| Montering | Fixed Tube Mounting Bracket (included) |
| Monteringssted | On Mast (Ø 27 – 60 mm), mast included |
| Max. effekt | 300 W |
28304-003T – In box (380-430 MHz)
28304-003L – In box (400-450 MHz)
28304-003H – In box (440-480 MHz)
