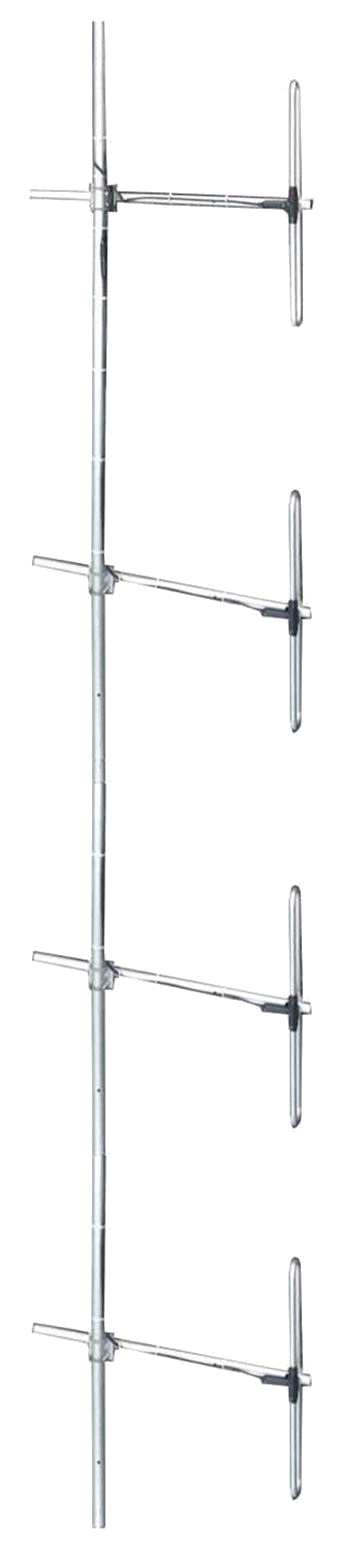

VHF 6 dBd Stacked Dipole Antenna
Stacked Center Fed VHF Dipole Antenna for PMR radios, VHF Air Band, Public Safety, Amateur Radio and other applications.
| Frekvens | 118 – 137 MHz, 136 – 158 MHz, 150 – 184 MHz (AIR/L/H) |
|---|---|
| Gain | 6 dBd, 8.15 dBi (1/4 λ distance to mast) 7.3 dBd, 9.4 dBi (3/8 λ distance to mast) |
| Stik | N-female |
| Kabel | RG213/U |
| Længde/højde | Length: 6000 mm Width: 600 mm |
| Montering | Fixed Tube Mounting Bracket (included) |
| Monteringssted | On Mast (Ø 27 – 60 mm), mast included |
| Max. effekt | 300 W |
28601-003AIR – In box (118-137 MHz)
28601-003L – In box (136-158 MHz)
28601-003H – In box (150-184 MHz)
Stacked Center Fed VHF Dipole Antenna for PMR radios, VHF Air Band, Public Safety, Amateur Radio and other applications.
| Frekvens | 118 – 137 MHz, 136 – 158 MHz, 150 – 184 MHz (AIR/L/H) |
|---|---|
| Gain | 6 dBd, 8.15 dBi (1/4 λ distance to mast) 7.3 dBd, 9.4 dBi (3/8 λ distance to mast) |
| Stik | N-female |
| Kabel | RG213/U |
| Længde/højde | Length: 6000 mm Width: 600 mm |
| Montering | Fixed Tube Mounting Bracket (included) |
| Monteringssted | On Mast (Ø 27 – 60 mm), mast included |
| Max. effekt | 300 W |
