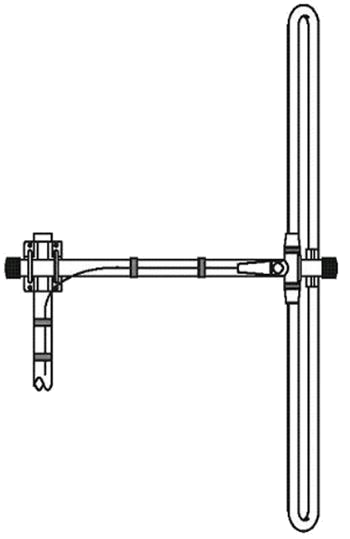

VHF 0 dBd Dipole Antenna
Center Fed VHF Dipole Antenna for PMR radios, VHF Air Band and other applications.
| Frekvens | 118 – 138 MHz, 136 – 158 MHz, 150 – 184 MHz (AIR/L/H) |
|---|---|
| Gain | 0 dBd, 2.15 dBi |
| Stik | N-female |
| Kabel | Approx. 1.5 m RG213/U |
| Længde/højde | Length: 1060 mm , 910 mm, 800 mm (AIR/L/H) Width: 600 mm |
| Montering | Fixed Tube Mounting Bracket (included – P05/01) |
| Monteringssted | On Tube (Ø 27 – 60 mm, vertical or horizontal) |
| Max. effekt | 150 W |
28001-003AIR – In box (118-138 MHz)
28001-003L – In box (136-158 MHz)
28001-003H – In box (150-184 MHz)
Center Fed VHF Dipole Antenna for PMR radios, VHF Air Band and other applications.
| Frekvens | 118 – 138 MHz, 136 – 158 MHz, 150 – 184 MHz (AIR/L/H) |
|---|---|
| Gain | 0 dBd, 2.15 dBi |
| Stik | N-female |
| Kabel | Approx. 1.5 m RG213/U |
| Længde/højde | Length: 1060 mm , 910 mm, 800 mm (AIR/L/H) Width: 600 mm |
| Montering | Fixed Tube Mounting Bracket (included – P05/01) |
| Monteringssted | On Tube (Ø 27 – 60 mm, vertical or horizontal) |
| Max. effekt | 150 W |
