VHF 150 MHz Unity Gain Omni Base Station Antenna
This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
| Frekvens | BC2-1GL: 118 – 137 MHz BC2-1GM: 130 – 144 MHz BC2-1GH: 144 – 174 MHz BC2-1GH/H: 170 – 200 MHz |
|---|---|
| Gain | 0 dBd, 2.15 dBi |
| Stik | Type N-female |
| Længde/højde | BC2-1GL/M: 2.0 m BC2-1GH: 1.7 m BC2-1GH/H: 1.7 m |

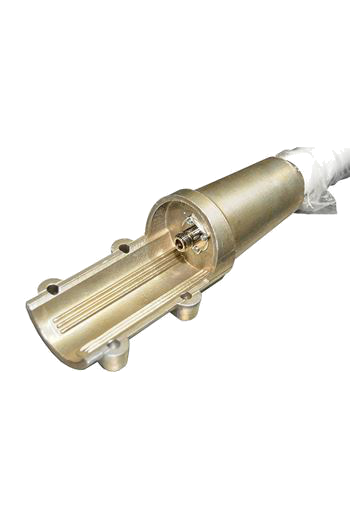

| Montering | Fixed Tube Mounting Bracket. Stainless Steel Mounting Hardware included. |
| Monteringssted | On vertical mast tube; Ø 30 – 60 mm |
| Max. effekt | 150 Watt |
| IP-klasse | IP66 |
BC2-1GL – 118 – 137 MHz Individually packing in Carton tube
BC2-1GM – 130 – 144 MHz Individually packing in Carton tube
BC2-1GH – 144 – 174 MHz Individually packing in Carton tube
BC2-1GH/H – 170 – 200 MHz Individually packing in Carton tube
This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
| Frekvens | BC2-1GL: 118 – 137 MHz BC2-1GM: 130 – 144 MHz BC2-1GH: 144 – 174 MHz BC2-1GH/H: 170 – 200 MHz |
|---|---|
| Gain | 0 dBd, 2.15 dBi |
| Stik | Type N-female |
| Længde/højde | BC2-1GL/M: 2.0 m BC2-1GH: 1.7 m BC2-1GH/H: 1.7 m |
| Montering | Fixed Tube Mounting Bracket. Stainless Steel Mounting Hardware included. |
| Monteringssted | On vertical mast tube; Ø 30 – 60 mm |
| Max. effekt | 150 Watt |
| IP-klasse | IP66 |
