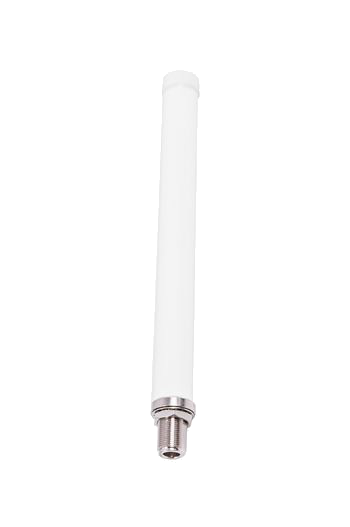

Omnidirectional Cellular Antenna Series
Series of multiband antenna combining the cellular/mobile GSM(2G), UMTS(3G) and LTE(4G). Ideal for IOT and M2M applications.
| Frekvens | 824 – 960 MHz, 1710 – 2170 MHz (LTE 800/1800/1900/2000/2100, UMTS 900/2100, GSM 850/900/1800/1900) |
|---|---|
| Gain | BC0822-1G: 0 dBd, 2.15 dBi BC0822-3G: 3 dBd, 5.15 dBi BC0822-5G: 5 dBd, 7.15 dBi |
| Stik | Type N-female |
| Længde/højde | BC0822-1G: 290 mm BC0822-3G: 400 mm BC0822-5G: 800 mm |

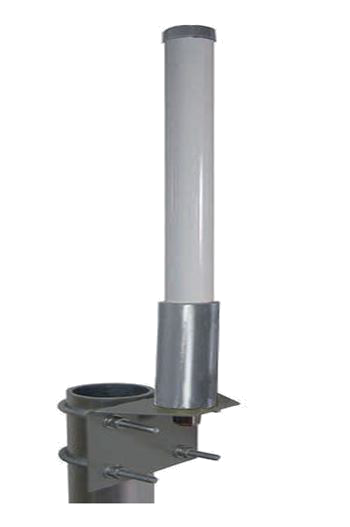

| Montering | BC0822-1G: Brackets included (Ø35-40 mm) BC0822-3/5G: Brackets included (Ø40-50 mm) |
| Monteringssted | On mast or pole |
| Max. effekt | BC0822-1G: 10 W BC0822-3G: 100W BC0822-5G: 50 W |
| IP-klasse | IP65 |
BC0822-1G – 0 dBd, 2.15 dBi Antenna only – in Box
BC0822-3G – 3 dBd, 5.15 dBi Antenna only – in Box
BC0822-5G – 5 dBd, 7.15 dBi Antenna only – in Box
