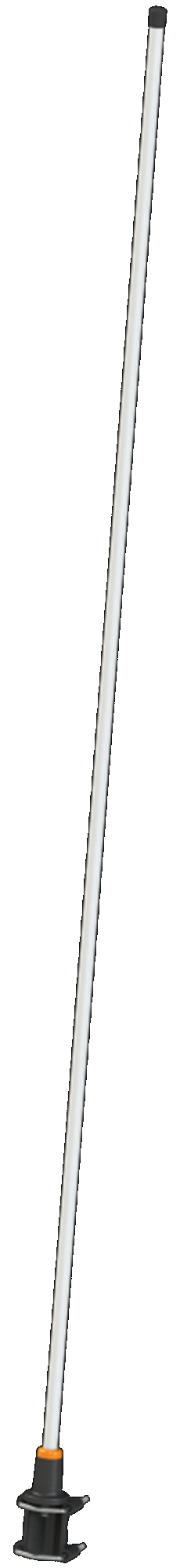

5 dBd Gain Base Station Antenna for 450 MHz band
This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
| Frekvens | 380 – 410 MHz, 400 – 430 MHz, 420 – 450 MHz, 440 – 470 MHz (A/B/C/D) |
|---|---|
| Gain | 5 dBd, 7.1 dBi, |
| Stik | N-female |
| Længde/højde | 2196 mm |

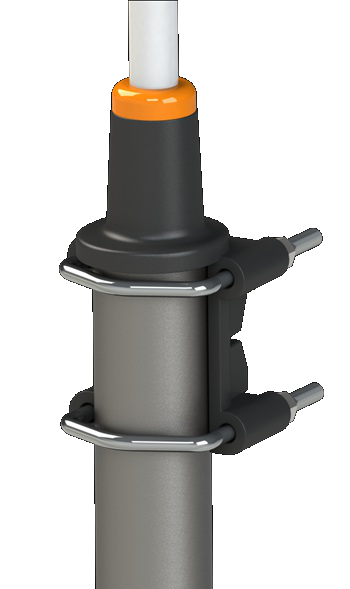

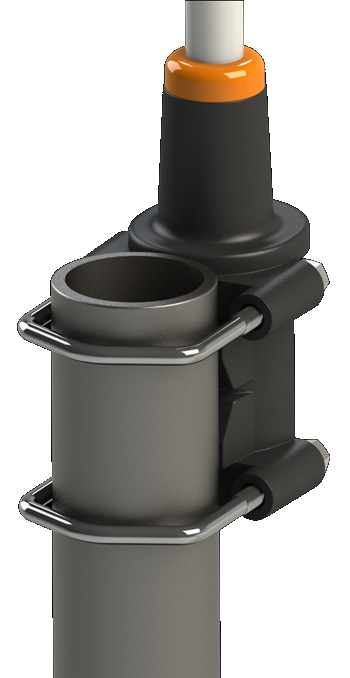

| Montering | Fixed Tube Mounting Bracket |
| Monteringssted | On Tube (Ø 30 – 60 mm, vertical or horizontal) or Wall mount (mounting hole distance 68.5 mm). |
| Max. effekt | 250 W |
| IP-klasse | IP66 |
23504-004A – 380-410 MHz (Individually packing in Carton tube)
23504-004B – 400-430 MHz (Individually packing in Carton tube)
23504-004C – 420-450 MHz (Individually packing in Carton tube)
23504-004D – 440-470 MHz (Individually packing in Carton tube)
