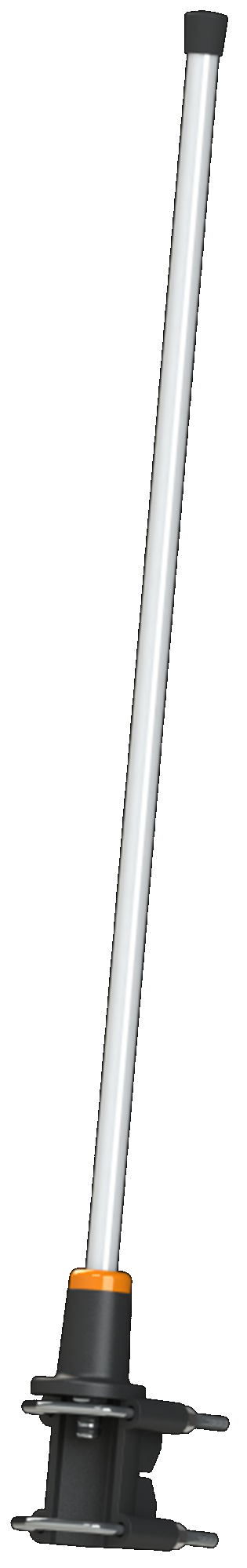

3 dBd Gain Base Station Antenna for 450 MHz band
This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
| Frekvens | 380 – 400 MHz, 406 – 430 MHz, 410 – 430 MHz, 417 – 450 MHz, 430 – 450 MHz, 440 – 470 MHz, 467 – 485 MHz, 485 – 503 MHz, 406 – 512 MHz (A/B/C/D/E/F/G/H/X) |
|---|---|

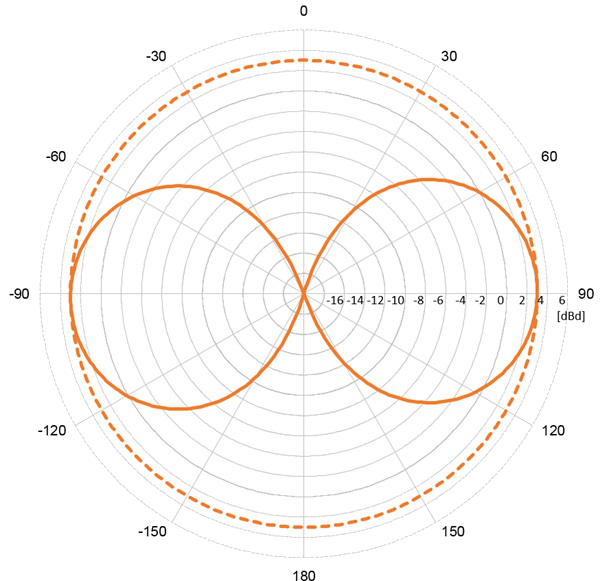

| Gain | 3 dBd, 5.1 dBi, |
| Stik | N-female |

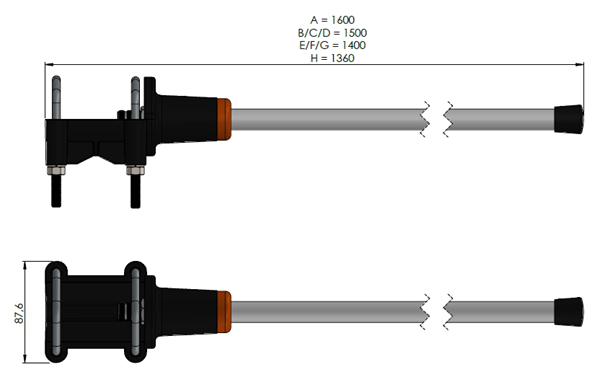

| Længde/højde | See Outline Drawing |

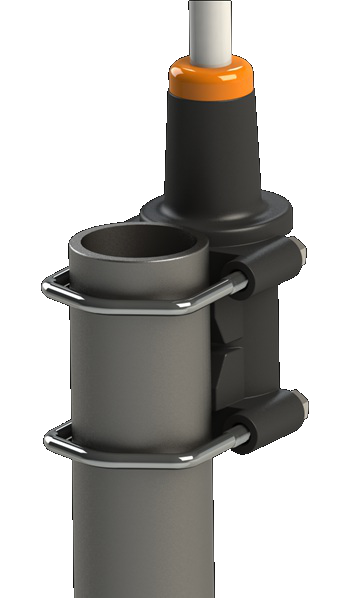

| Montering | Fixed Tube Mounting Bracket (included). Wall mount Bolts not included. |
| Monteringssted | On Tube (Ø 30 – 60 mm, vertical or horizontal) or Wall mount (mounting hole distance 68.5 mm). |
| Max. effekt | 300 W |
| IP-klasse | IP66 |
23304-004A – 380-400 MHz (Individually packing in Carton tube)
23304-004B – 406-430 MHz (Individually packing in Carton tube)
23304-004C – 410-430 MHz (Individually packing in Carton tube)
23304-004D – 417-450 MHz (Individually packing in Carton tube)
23304-004E – 430-450 MHz (Individually packing in Carton tube)
23304-004F – 440-470 MHz (Individually packing in Carton tube)
23304-004G – 467-485 MHz (Individually packing in Carton tube)
23304-004H – 485-503 MHz (Individually packing in Carton tube)
23304-004X – 406-512 MHz (Individually packing in Carton tube)
