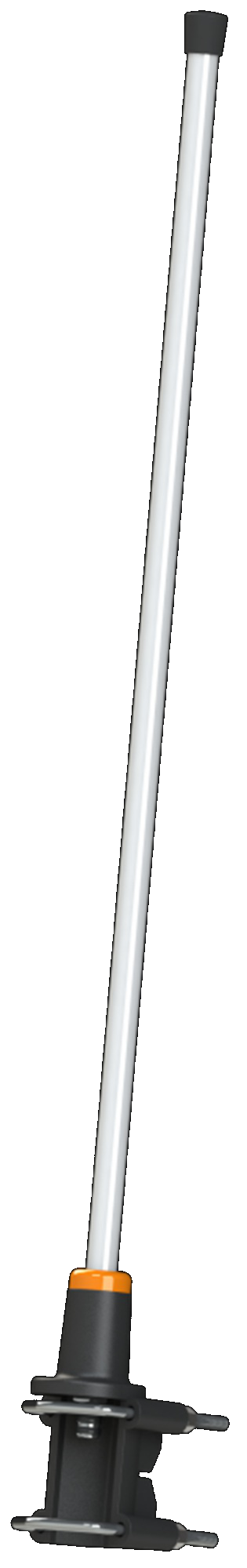

3 dBd Gain Base Station Antenna for 150 MHz band
This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.

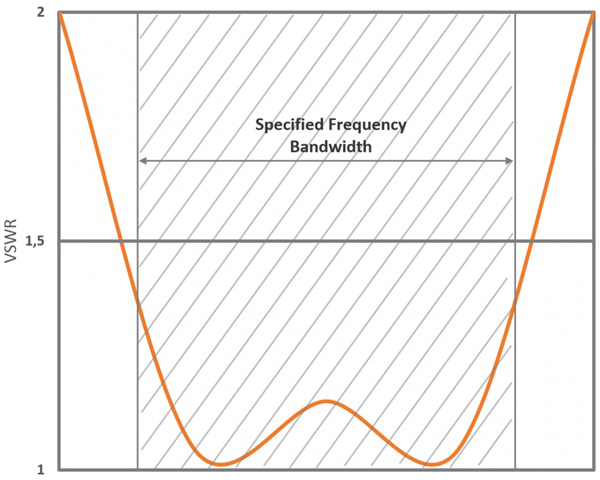

| Frekvens | 118 – 124 MHz, 124 – 130 MHz, 130 – 136 MHz, 136 – 142 MHz, 142 – 149 MHz, 149 – 156 MHz, 153 – 162 MHz, 163 – 174 MHz, 170 – 177 MHz, 218 – 225 MHz, 118 – 174 MHz (A/B/C/D/E/F/G/H/J/K/X) |
|---|---|

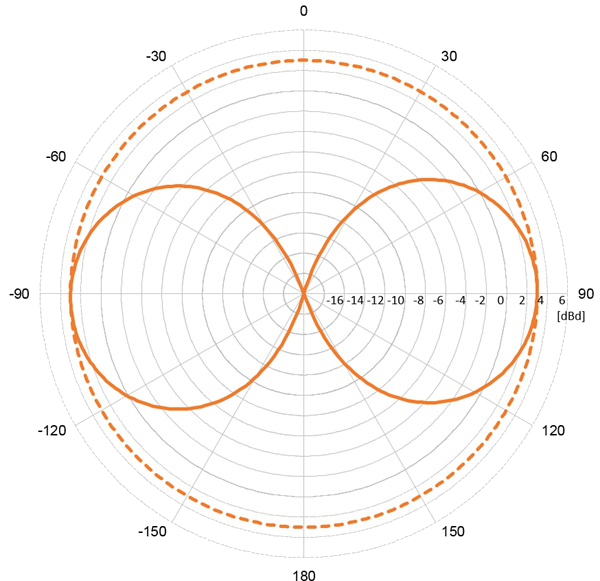

| Gain | 3 dBd, 5.1 dBi, |
| Stik | N-female |

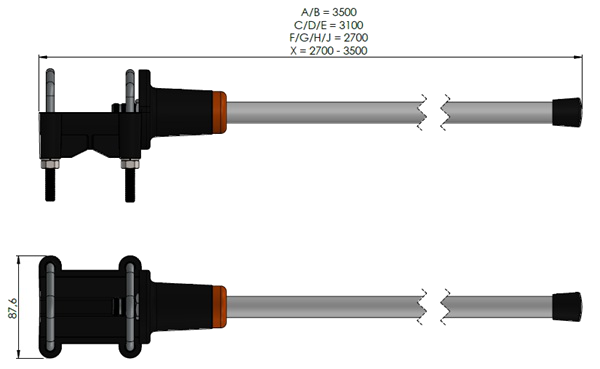

| Længde/højde | See Outline Drawing |

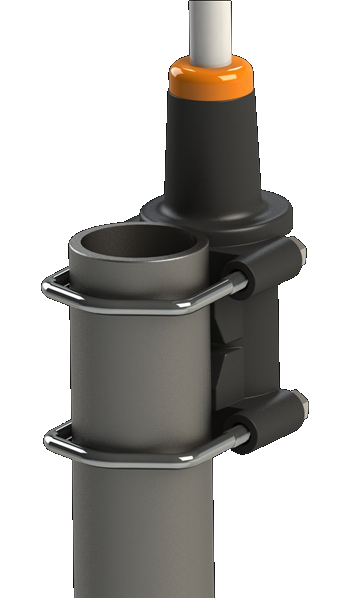

| Montering | Fixed Tube Mounting Bracket (included). Wall mount Bolts not included. |
| Monteringssted | On Tube (Ø 30 – 60 mm, vertical or horizontal) or Wall mount (mounting hole distance 68.5 mm). |
| Max. effekt | 150 W |
| IP-klasse | IP66 |
22310-004A – 118-124 MHz (Individually packing in Carton tube)
22310-004B – 124-130 MHz (Individually packing in Carton tube)
22310-004C – 130-136 MHz (Individually packing in Carton tube)
22310-004D – 136-142 MHz (Individually packing in Carton tube)
22310-004E – 142-149 MHz (Individually packing in Carton tube)
22310-004F – 149-156 MHz (Individually packing in Carton tube)
22310-004G – 153-162 MHz (Individually packing in Carton tube)
22310-004H – 163-174 MHz (Individually packing in Carton tube)
22310-004J – 170-177 MHz (Individually packing in Carton tube)
22310-004K – 218-225 MHz (Individually packing in Carton tube)
22310-004X – 118-174 MHz (Individually packing in Carton tube)
