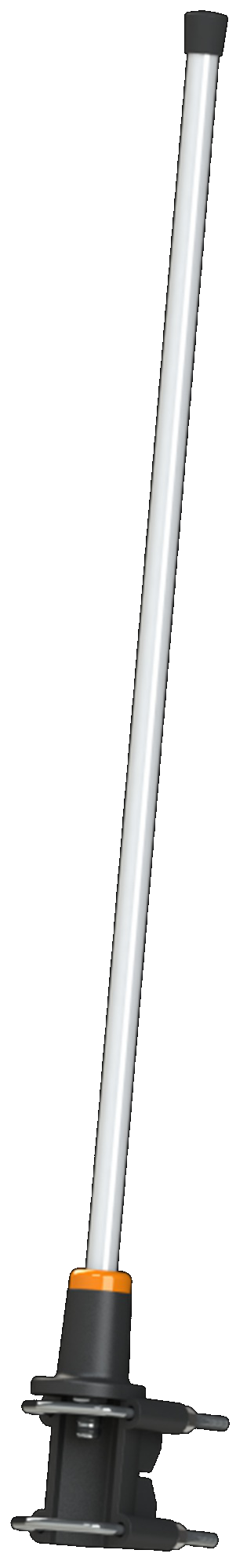

Unity Gain Omni Base Station Antenna for the 450 MHz band
This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
| Frekvens | 406 – 426 MHz, 420 – 440 MHz, 430 – 450 MHz, 449 – 471 MHz, 468 – 492 MHz, 380 – 400 MHz, 330 – 360 MHz, 330 – 406 MHz- 512 MHz (A/B/C/D/E/F/G/X) |
|---|---|
| Gain | 0 dBd, 2.1 dBi |
| Stik | N-female |

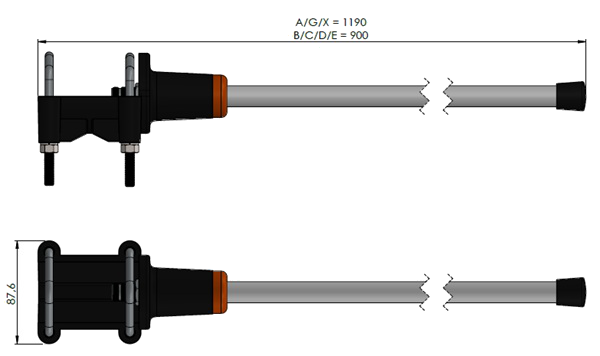

| Længde/højde | See Outline Drawing |

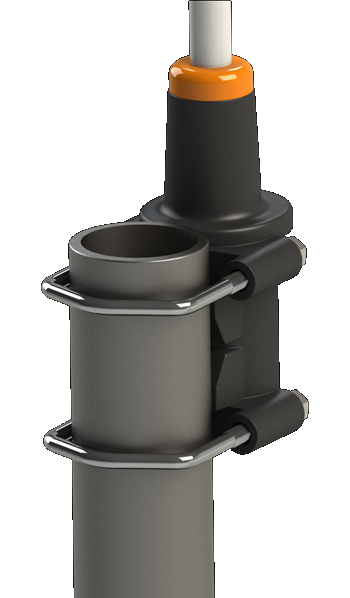

| Montering | Fixed Tube Mounting Bracket (included). Wall mount Bolts not included. |
| Monteringssted | On Tube (Ø 30 – 60 mm, vertical or horizontal) or Wall mount (mounting hole distance 68.5 mm). |
| Max. effekt | 300 W |
| IP-klasse | IP66 |
23004-004A – 406-426 MHz (Individually packing in Carton tube)
23004-004B – 420-440 MHz (Individually packing in Carton tube)
23004-004C – 430-450 MHz (Individually packing in Carton tube)
23004-004D – 449-471 MHz (Individually packing in Carton tube)
23004-004E – 468-492 MHz (Individually packing in Carton tube)
23004-000F – 380-400 MHz (Individually packing in Carton tube)
23004-004G – 330-360 MHz (Individually packing in Carton tube)
23004-004X – 406-512 MHz (Individually packing in Carton tube)
