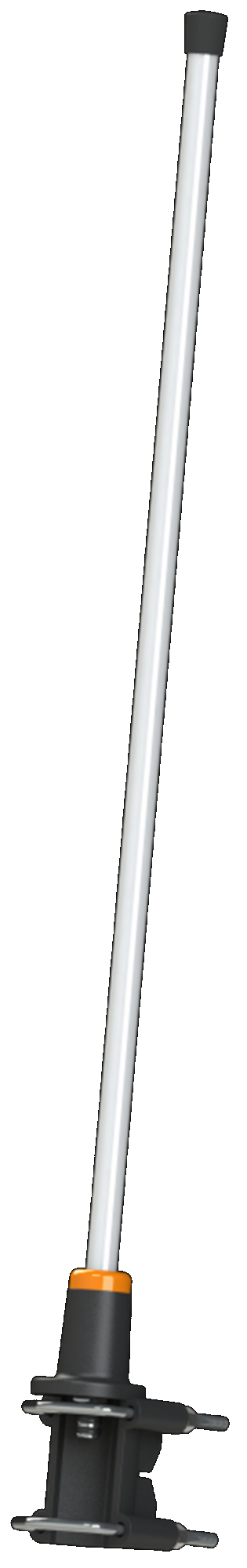

Unity Gain Omni Base Station Antenna for the 150 MHz band
This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
| Frekvens | 118 – 137 MHz, 128 – 144 MHz, 144 – 163 MHz, 154 – 174 MHz, 218 – 225 MHz, 118 – 174 MHz (A/B/C/D/E/X) |
|---|---|
| Gain | 0 dBd, 2.1 dBi |
| Stik | N-female |

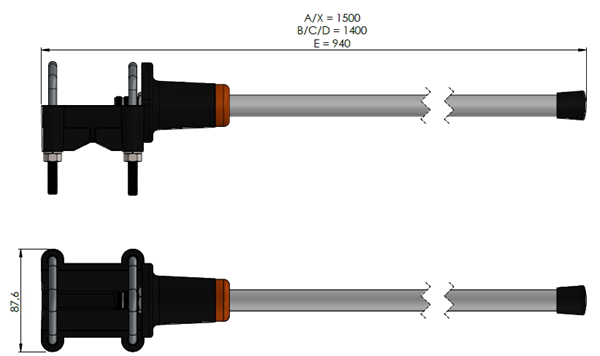

| Længde/højde | See Outline Drawing |

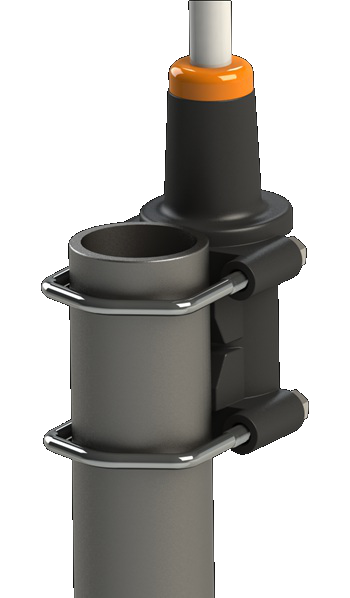

| Montering | Fixed Tube Mounting Bracket (included). Wall mount Bolts not included. |
| Monteringssted | On Tube (Ø 30 – 60 mm, vertical or horizontal) or Wall mount (mounting hole distance 68.5 mm). |
| Max. effekt | 150 W |
| IP-klasse | IP66 |
22010-004A – 118-137 MHz (Individually packing in Carton tube)
22010-004B – 128-144 MHz (Individually packing in Carton tube)
22010-004C – 144-163 MHz (Individually packing in Carton tube)
22010-004D – 154-174 MHz (Individually packing in Carton tube)
22010-004E – 218-225 MHz (Individually packing in Carton tube)
22010-004X – 118-174 MHz (Individually packing in Carton tube)
This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
| Frekvens | 118 – 137 MHz, 128 – 144 MHz, 144 – 163 MHz, 154 – 174 MHz, 218 – 225 MHz, 118 – 174 MHz (A/B/C/D/E/X) |
|---|---|
| Gain | 0 dBd, 2.1 dBi |
| Stik | N-female |
| Længde/højde | See Outline Drawing |
| Montering | Fixed Tube Mounting Bracket (included). Wall mount Bolts not included. |
| Monteringssted | On Tube (Ø 30 – 60 mm, vertical or horizontal) or Wall mount (mounting hole distance 68.5 mm). |
| Max. effekt | 150 W |
| IP-klasse | IP66 |
