5G Multiband Antenna 450 – 3800 MHz
WAM5G-plus is a long range high gain multiband antenna, covering 450 – 470 and 698 – 3800 MHz. This wall mounted antenna is suitable for GSM(2G), UMTS(3G), LTE(4G) and 5GNR(5G) devices. The antenna supports Public Safety, LTE450/700/800 MHz, IOT/M2M, 868/915 MHz, cellular/mobile, 2G/3G/4G/5G, CCTV, security, smart metering, remote telemetry applications and etc.
| Frekvens | 450 – 470 MHz, 698 – 960 MHz, 1427 – 1518 MHz, 1710 – 2170 MHz, 2300 – 2690 MHz, 3300 – 3800 MHz |
|---|---|

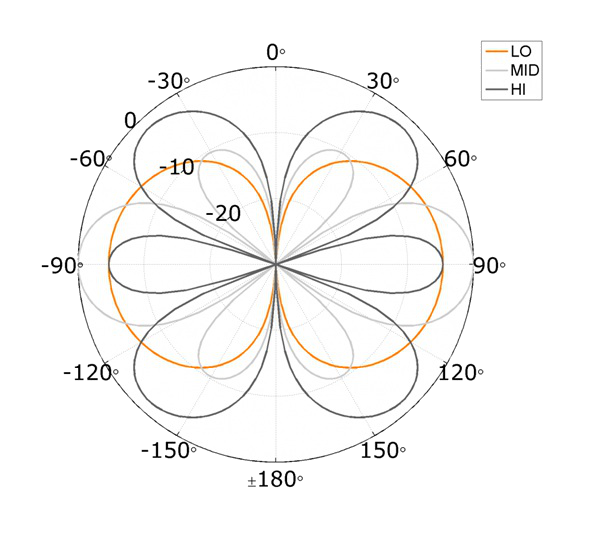

| Gain | 0 dBd, 2.15 dBi (450 – 470 MHz/698-960 MHz) 3 dBd, 5.15 dBi (1427-1518/1710-2170 MHz) 7 dBd, 9.15 dBi (2300-2690/3300-3800 MHz) |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | 640 mm |
| Monteringssted | On wall or pole |
| Max. effekt | 100 W |
| IP-klasse | IP66 |

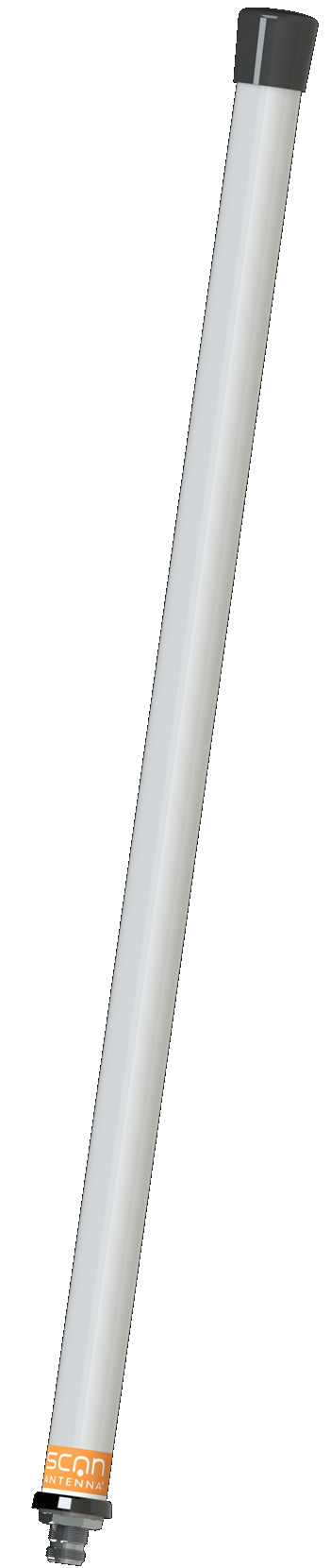

40103-001 – Antenna only (Polybag)

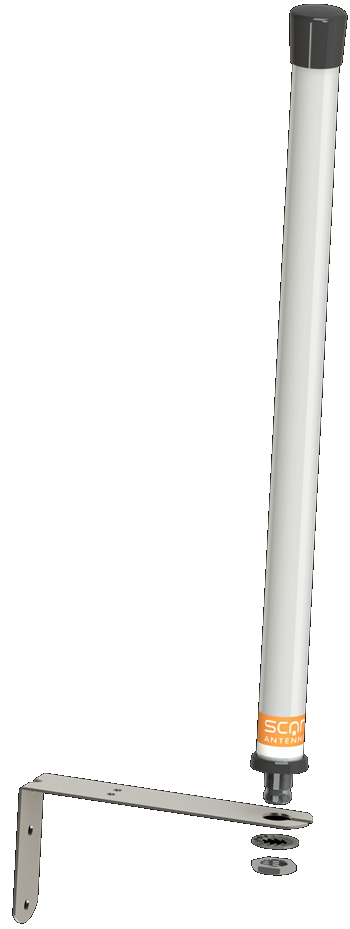

40103-011 – Antenna + Wall Bracket + Mounting Kit (Polybag)

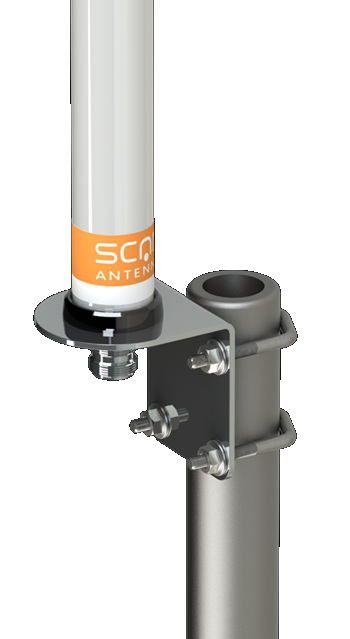

40103-021 – Antenna + Pole Bracket + Mounting Kit (Polybag)
10103-011 – Bracket + Mounting Kit (Polybag)
WAM5G-plus is a long range high gain multiband antenna, covering 450 – 470 and 698 – 3800 MHz. This wall mounted antenna is suitable for GSM(2G), UMTS(3G), LTE(4G) and 5GNR(5G) devices. The antenna supports Public Safety, LTE450/700/800 MHz, IOT/M2M, 868/915 MHz, cellular/mobile, 2G/3G/4G/5G, CCTV, security, smart metering, remote telemetry applications and etc.
| Frekvens | 450 – 470 MHz, 698 – 960 MHz, 1427 – 1518 MHz, 1710 – 2170 MHz, 2300 – 2690 MHz, 3300 – 3800 MHz |
|---|---|
| Gain | 0 dBd, 2.15 dBi (450 – 470 MHz/698-960 MHz) 3 dBd, 5.15 dBi (1427-1518/1710-2170 MHz) 7 dBd, 9.15 dBi (2300-2690/3300-3800 MHz) |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | 640 mm |
| Monteringssted | On wall or pole |
| Max. effekt | 100 W |
| IP-klasse | IP66 |
