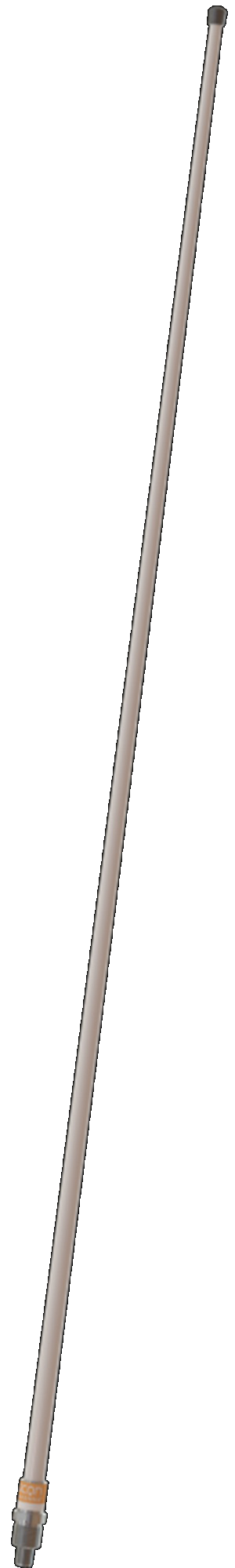

4 dB Marine VHF Glass Fibre Antenna 1.36 m
Long range high gain VHF antenna for professional use in the International Maritime VHF Band
| Frekvens | 156 – 162.5 MHz (International Maritime VHF Band) |
|---|---|
| Gain | 4 dB (Marine), 0.5 dBd, 2.6 dBi |
| Stik | UHF-female |
| Kabel | No cable supplied |
| Længde/højde | 1360 mm |
| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On rail, mast or deck |
| Max. effekt | 150 W |
| IP-klasse | IP66 |
11074-001 – Antenna only – in Polybag
11074-002 – Antenna only – in Carton tube

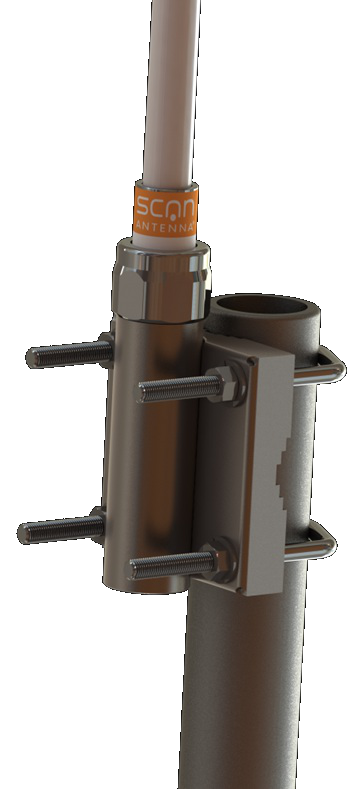

11074-141 – Antenna + Wall/Rail Mount – in Polybag
11074-191 – Antenna + Universal Wall/Rail Mount – in Polybag
11074-192 – Antenna + Universal Wall/Rail Mount – in Carton tube

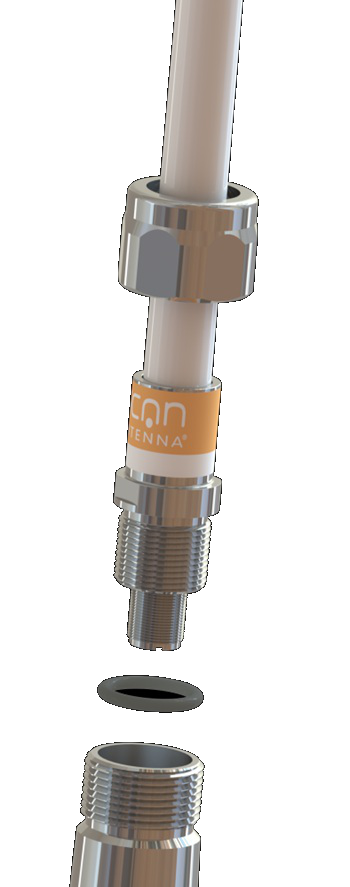

11074-431 – Antenna + 1″ Revolving Nut Kit – in Polybag
11074-432 – Antenna + 1″ Revolving Nut Kit – in Carton tube
11074-514 – Antenna + Mast/Rail Mount – in Carton tube
