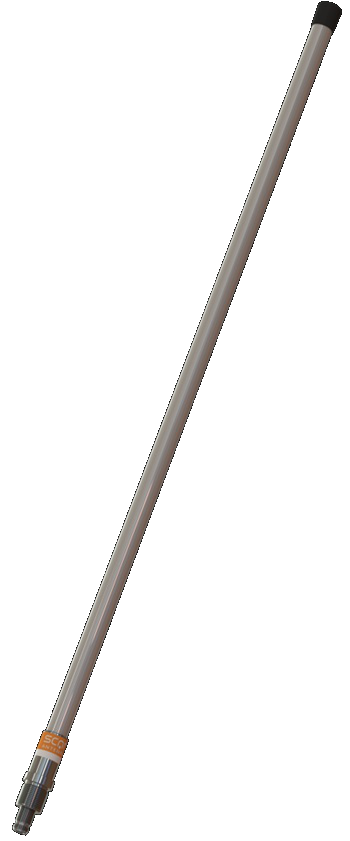

9 dB UHF Fibreglass Antenna 0,89 m (2310-2485 MHz)
Ingen
| Frekvens | 2310 – 2485 MHz |
|---|---|
| Gain | 9 dB (Marine), 5 dBd, 7.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | Approx. 890 mm |

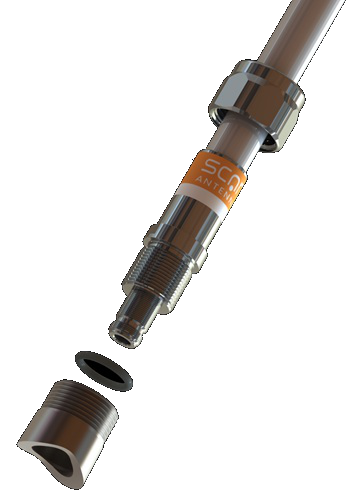

| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 80 W |
| IP-klasse | IP66 |
14249-000 – Antenna only – bulk packing
14249-001 – Antenna only – in Polybag
14249-002 – Antenna only – in Carton tube
14249-431 – Antenna + 1″ Revolving Nut Kit – in Polybag
14249-432 – Antenna + 1″ Revolving Nut Kit – in Carton tube
Ingen
| Frekvens | 2310 – 2485 MHz |
|---|---|
| Gain | 9 dB (Marine), 5 dBd, 7.1 dBi |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | Approx. 890 mm |
| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 80 W |
| IP-klasse | IP66 |
