Item number: 24009-002

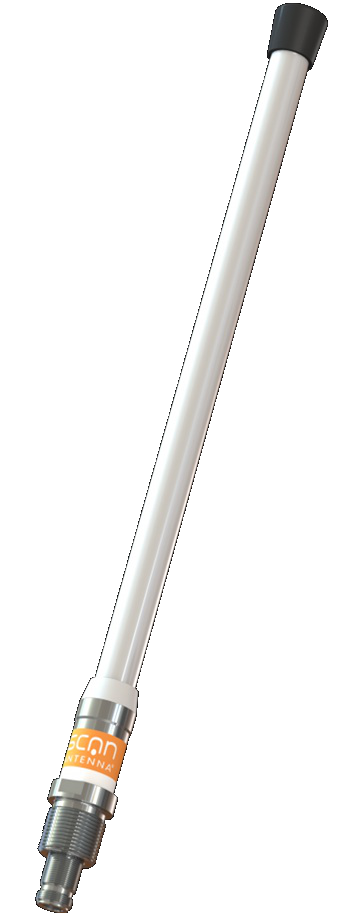

LTE900NB – 0 dBd IoT Fibreglass Antenna (860-930 MHz)

0 dBd IoT Fibreglass Antenna (860-930 MHz)

LTE900NB – 0 dBd IoT Fibreglass Antenna (860-930 MHz)

LTE900NB – 0 dBd IoT Fibreglass Antenna (860-930 MHz) – billede 2

LTE900NB – 0 dBd IoT Fibreglass Antenna (860-930 MHz) – billede 3

LTE900NB – 0 dBd IoT Fibreglass Antenna (860-930 MHz) – billede 4

Description

Variants

Downloads

Accessories

Description

Ingen

Especially made for LPWAN applications
Supports 868 and 915 MHz
ISM, LoRa, Sigfox and M-Bus
End-fed 1/2 λ coaxial dipole antenna design

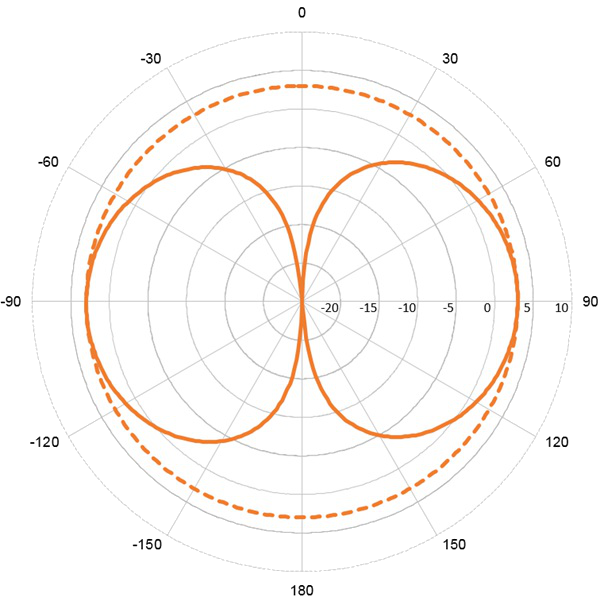

Full omni-directional radiation pattern
No groundplane needed

Specifikationer

Frekvens	860 – 930 MHz
Gain	0 dBd, 2.1 dBi
Stik	N-female
Kabel	No cable supplied
Længde/højde	445 mm

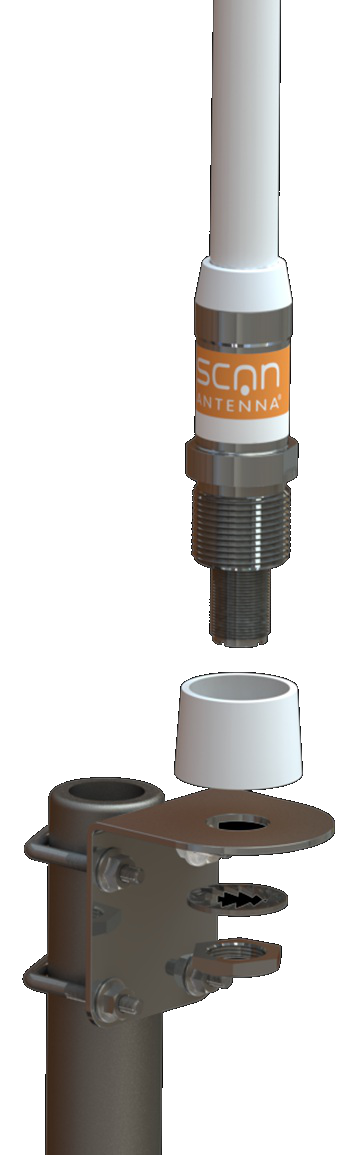

Montering	On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets
Monteringssted	On mast or deck
Max. effekt	200 W
IP-klasse	IP66

Variants

Downloads

Accessories

Beskrivelse

Downloads

Beskrivelse

Ingen

Especially made for LPWAN applications
Supports 868 and 915 MHz
ISM, LoRa, Sigfox and M-Bus
End-fed 1/2 λ coaxial dipole antenna design
Full omni-directional radiation pattern
No groundplane needed

Specifikationer

Frekvens	860 – 930 MHz
Gain	0 dBd, 2.1 dBi
Stik	N-female
Kabel	No cable supplied
Længde/højde	445 mm
Montering	On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets
Monteringssted	On mast or deck
Max. effekt	200 W
IP-klasse	IP66
