Name: HF720 RX 7 m two-part LF/MF/HF Fibreglass… | Scan Antennas
SKU: 13722-002

Item number: 13722-002

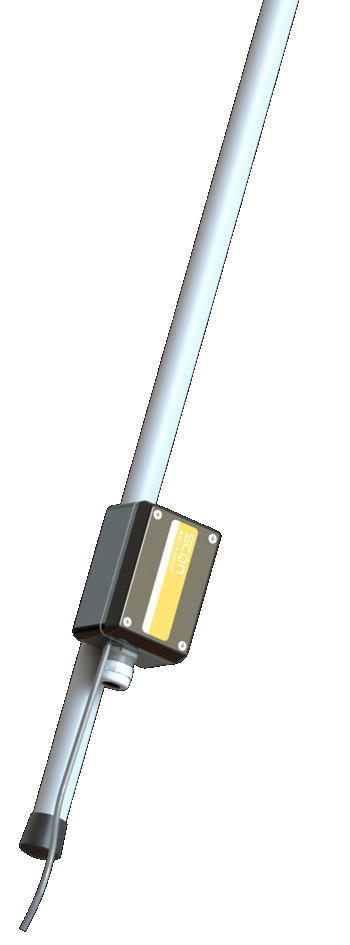

HF720 RX – 7 m two-part LF/MF/HF Fibreglass Antenna with coaxial connection box

7 m two-part LF/MF/HF Fibreglass Antenna with coaxial connection box

Description

Variants

Downloads

Accessories

Description

Ingen

High quality 7 m high HF antenna for professional use
Built in matching transformer for low frequency receiving
Rugged design
Chrome plated solid brass joints
Designed for rail mounting
Fed via screw terminal inside connection box with standard coaxial cable (Ø 5 – 10 mm)
Full omni-directional receiving pattern

Specifikationer

Frekvens	0.15 – 30 MHz (LF, MF and HF)
Stik	Screw terminal inside connection box
Kabel	No cable supplied (Use standard coax cable Ø 5 – 10 mm)
Længde/højde	7 m

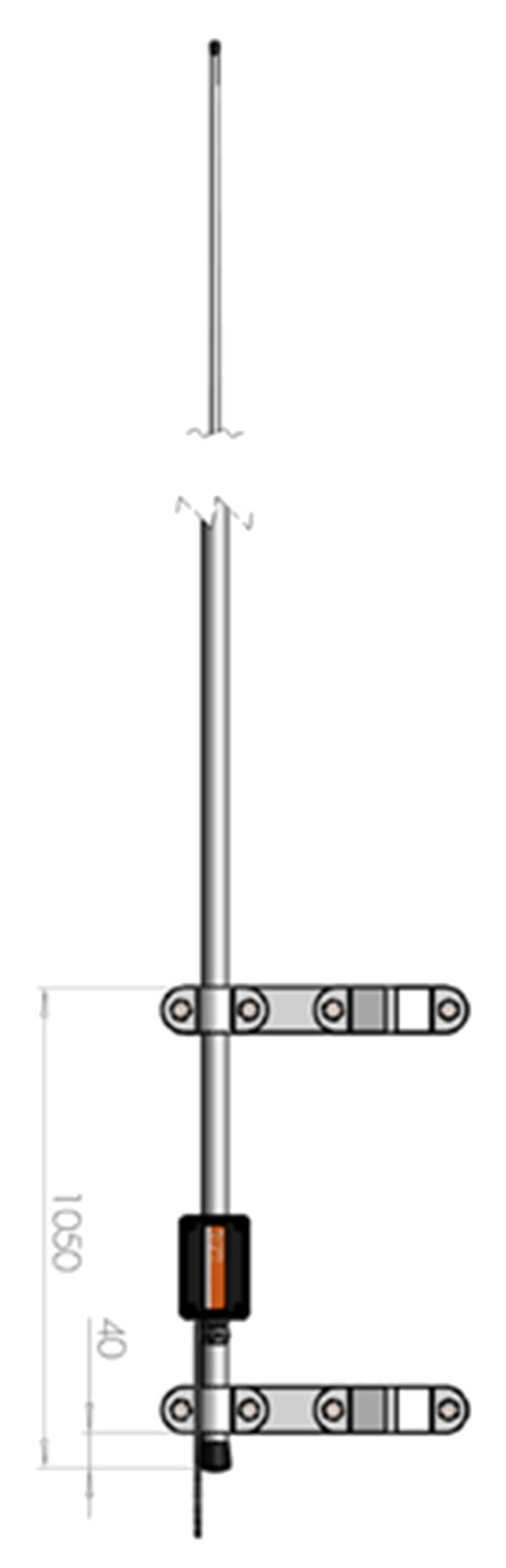

Montering	Rail Bracket Kit (Small) P/N 10000-153 (Not supplied!)
Monteringssted	On rail or pole (Ø 30 – 90 mm)
Max. effekt	n/a (Receive only)

Variants

Downloads

Accessories

Beskrivelse

Downloads

Beskrivelse

Ingen

High quality 7 m high HF antenna for professional use
Built in matching transformer for low frequency receiving
Rugged design
Chrome plated solid brass joints
Designed for rail mounting
Fed via screw terminal inside connection box with standard coaxial cable (Ø 5 – 10 mm)
Full omni-directional receiving pattern

Specifikationer

Frekvens	0.15 – 30 MHz (LF, MF and HF)
Stik	Screw terminal inside connection box
Kabel	No cable supplied (Use standard coax cable Ø 5 – 10 mm)
Længde/højde	7 m
Montering	Rail Bracket Kit (Small) P/N 10000-153 (Not supplied!)
Monteringssted	On rail or pole (Ø 30 – 90 mm)
Max. effekt	n/a (Receive only)

Downloads

Want to know more?

Want to know more about HF720 RX – 7 m two-part LF/MF/HF Fibreglass Antenna with coaxial connection boxplease fill out the form and we will contact you.
