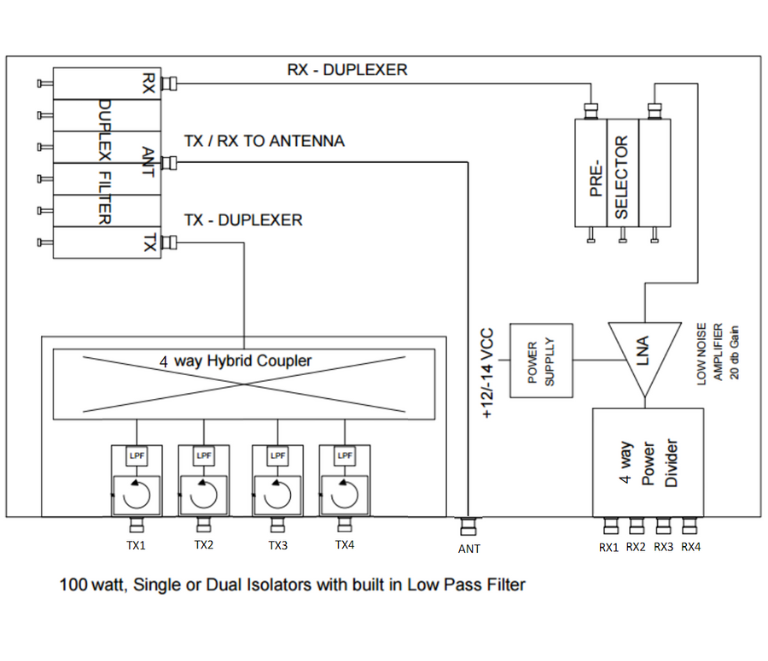

HCMR150-4-DUPT series is a VHF TX/RX hybrid combiner and duplexer with single or dual isolators used for combining 4 VHF transceivers into one antenna with close frequency spacing.
- Standard EIA 19” trays. Two of 2HU, 400 mm depth One of 1HU, 300 mm depth Tuned to customer specified frequencies, need to be specified when ordering. Full bandwidth. 100 W power handling. Combiner with high spec. external duplexer.
